Test Chambers

Built by engineers, for engineers

Full line of Chambers

Full Line

of Chambers

Innovation meets accuracy and performance.

TestEquity manufacturers environmental chambers for a wide range of temperature and humidity tests including benchtop and floor standing test chambers.

Explore Our Chambers


Specs Inside Volume
(w x h x d)
Low Temp High Temp Humidity
(see # below)
Window/Light Features Power
Specs Inside Volume
(w x h x d)
Low Temp High Temp Humidity
(see # below)
Window/Light Features Power
Specs Inside Volume
(w x h x d)
Low Temp High Temp Humidity
(see # below)
Window/Light Features Power
Specs Inside Volume
(w x h x d)
Low Temp High Temp Humidity
(see # below)
Window/Light Features Power
Specs Inside Volume
(w x h x d)
Low Temp High Temp Humidity
(see # below)
Window/Light Features Power
Specs Inside Volume
(w x h x d)
Low Temp High Temp Humidity
(see # below)
Window/Light Features Power
Specs Inside Volume
(w x h x d)
Low Temp High Temp Humidity
(see # below)
Window/Light Features Power
Specs Inside Volume
(w x h x d)
Low Temp High Temp Humidity
(see # below)
Window/Light Features Power
Specs Inside Volume
(w x h x d)
Low Temp High Temp Humidity
(see # below)
Window/Light Features Power
Specs Inside Volume
(w x h x d)
Low Temp High Temp Humidity
(see # below)
Window/Light Features Power
Specs Inside Volume
(w x h x d)
Low Temp High Temp Humidity
(see # below)
Window/Light Features Power
Specs Inside Volume
(w x h x d)
Low Temp High Temp Humidity
(see # below)
Window/Light Features Power
Specs Inside Volume
(w x h x d)
Low Temp High Temp Humidity
(see # below)
Window/Light Features Power
Specs Inside Volume
(w x h x d)
Low Temp High Temp Humidity
(see # below)
Window/Light Features Power
Specs Inside Volume
(w x h x d)
Low Temp High Temp Humidity
(see # below)
Window/Light Features Power
Specs Inside Volume
(w x h x d)
Low Temp High Temp Humidity
(see # below)
Window/Light Features Power
Specs Inside Volume
(w x h x d)
Low Temp High Temp Humidity
(see # below)
Window/Light Features Power
Specs Inside Volume
(w x h x d)
Low Temp High Temp Humidity
(see # below)
Window/Light Features Power
Specs Inside Volume
(w x h x d)
Low Temp High Temp Humidity
(see # below)
Window/Light Features Power
Specs Inside Volume
(w x h x d)
Low Temp High Temp Humidity
(see # below)
Window/Light Features Power
Specs Inside Volume
(w x h x d)
Low Temp High Temp Humidity
(see # below)
Window/Light Features Power
Specs Inside Volume
(w x h x d)
Low Temp High Temp Humidity
(see # below)
Window/Light Features Power
Specs Inside Volume
(w x h x d)
Low Temp High Temp Humidity
(see # below)
Window/Light Features Power
Specs Inside Volume
(w x h x d)
Low Temp High Temp Humidity
(see # below)
Window/Light Features Power
Specs Inside Volume
(w x h x d)
Low Temp High Temp Humidity
(see # below)
Window/Light Features Power
155 Chamber 155 0.55 Cu Ft
12 x 8 x 10
-20°C +130°C -- -- Benchtop 115V or 230 V, 1 PH switchable
107 Chamber 107 0.7 Cu Ft
12 x 9 x 11.25
-42°C +130°C -- -- Benchtop 120V, 1 PH, 15A
TEC1 Chamber TEC1 0.96 Cu Ft
16 x 8 x 13
+10°C +60°C -- -- Benchtop Thermoelectric Heating / Cooling 115V or 230V, 1 PH switchable
101H-B Chamber 101H-B 1.1 Cu Ft
13.8 x 11.8 x 11.8
-30°C +130°C 10% to 95% RH Yes Benchtop 120V, 1 PH, 15 A
101H-F Chamber 101H-F 1.1 Cu Ft
13.8 x 11.8 x 11.8
-30°C +130°C 10% to 95% RH Yes Floor Standing 120V, 1 PH, 15 A
115A-B Chamber 115A-B 1.5 Cu Ft
16 x 12 x 14
-73°C +175°C -- Yes Benchtop 120V, 1 PH, 20A
115A-F Chamber 115A-F 1.5 Cu Ft
16 x 12 x 14
-73°C +175°C -- Yes Floor Standing 120V, 1 PH, 20A
115R Chamber 115R 1.55 Cu Ft
16 x 12 x 14
-73°C +175°C -- Yes Stackable 120V, 1 PH, 20A
123C Chamber 123C 2.3 Cu Ft
18 x 16.5 x 13.5
-68°C +175°C -- Yes Floor Standing 120V, 1 PH, 20A
123H Chamber 123H 2.3 Cu Ft
18 x 16.5 x 13.5
-68°C +175°C 10% to 95% RH Yes Floor Standing 120V, 1 PH, 20A
123HS Chamber 123HS 2.3 Cu Ft
18 x 16.5 x 13.5
-35°C +175°C 10% to 95% RH Yes Floor Standing 120V, 1 PH, 20A
140 Chamber 140 4 Cu Ft
22 x 18 x 18
-73°C +175°C -- Yes Floor Standing 208 or 230V, 1 PH
1007S Chamber 1007S 7 Cu Ft
24 x 21 x 24
-35°C +175°C -- Yes Floor Standing 208 or 230V, 1 PH
1007C Chamber 1007C 7 Cu Ft
24 x 21 x 24
-73°C +175°C -- Yes Floor Standing 208 or 230V, 1 or 3 PH
3007C Chamber 3007C 7 Cu Ft
24 x 21 x 24
-73°C +175°C -- Yes Floor Standing, Fast Ramp Rates, High Product Throughput 208 or 230V, 3 PH
3007-LN2 Chamber 3007C 7 Cu Ft
24 x 21 x 24
-150°C +175°C -- No Floor Standing, Very Low Temperature, Ultra Fast Ramp, Liquid Nitrogen Cooled 208 or 230V, 3 PH
1007H Chamber 1007H 7 Cu Ft
24 x 21 x 24
-73°C +175°C 10% to 95% RH Yes Floor Standing 208 or 230V, 1 or 3 PH
1016S Chamber 1016S 16 Cu Ft
30 x 30 x 30
-35°C +175°C -- Yes Floor Standing 208 or 230V, 3 PH
1016C Chamber 1016C 16 Cu Ft
30 x 30 x 30
-73°C +175°C -- Yes Floor Standing 208 or 230V, 3 PH
1016H-2 Chamber 1016H-2 16 Cu Ft
30 x 30 x 30
-73°C +175°C 10% to 95% RH Yes Floor Standing, 2x2HP Compressors 208 or 230V, 1 or 3 PH
1016H Chamber 1016H 16 Cu Ft
30 x 30 x 30
-73°C +175°C 10% to 95% RH Yes Floor Standing, 3.5x3.5HP Compressors 208 or 230V, 3 PH

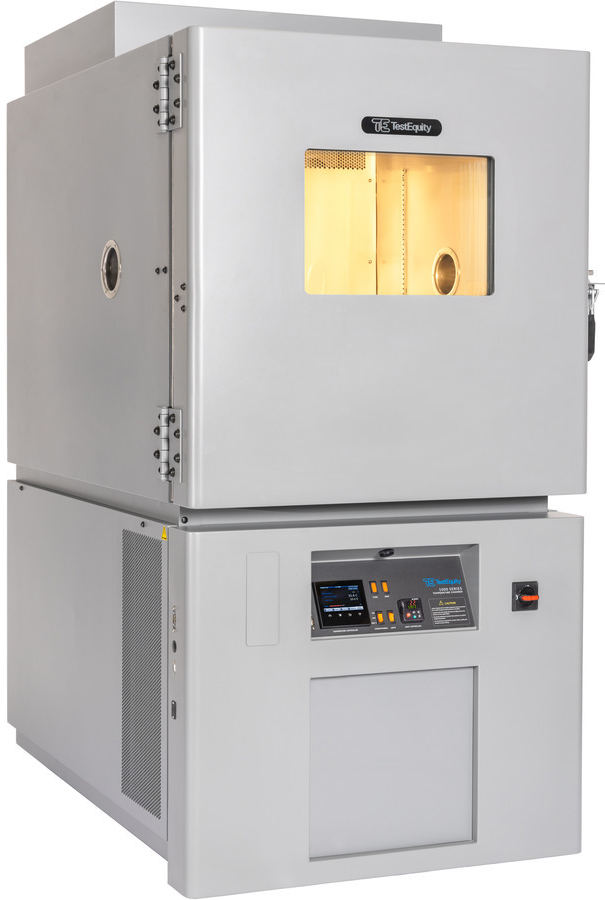

3016C Chamber 3016C 16 Cu Ft
30 x 30 x 30
-73°C +175°C -- Yes Floor Standing, Fast Ramp Rates, High Product Throughput 208 or 230V, 3 PH
1027S Chamber 1027S 27 Cu Ft
40 x 32 x 36.5
-35°C +175°C -- Yes Floor Standing 208 or 230V, 3 PH
1027C Chamber 1027C 27 Cu Ft
40 x 32 x 36.5
-73°C +175°C -- Yes Floor Standing 208 or 230V, 3 PH
1027H Chamber 1027H 27 Cu Ft
40 x 32 x 36.5
-73°C +175°C 10% to 95% RH Yes Floor Standing 208 or 230V, 3 PH

Included With Your Chambers

  • Two access ports, one on each side
  • Viewing window and light
    (except models 107, 155, and 3007-LN2)
  • Original F4 controler or new F4T touch screeen controller
    ( models 101H, 155 and 3007-LN2 only available with F4T
  • RS-232 Interface
  • High/Low limit controller
    (audible alarm on all except models 101H, 107, 155)
  • Shelf
  • 3 Years parts, 1year labor warranty
Included With Your Chambers

Available Options

  • GPIB Interface
  • Etheret interface
    (has native Ethernet interface)
  • Additional or larger ports
  • Additional shelves
  • Shelf slides
    (available on 1007, 3007, 1016, 1027 series)
  • Shelf slides
    (available on 1007, 3007, 1016, 1027 series)
  • Circular chart recorder
    (available on 123, 1007, 1016, 1027, 3000 series)
  • GN2 Purge
    (available on 101H, 115A, 123, 1007, 3007, 1016, 1027, 3000 series)
  • Dry air purge
    (available on 101H, 115A, 123, 1007, 3007, 1016, 1027, 3000 series)
  • Export and special input voltages
  • Controller retransmit outputs
  • Event relays
  • Water recirculation system
    (for Huminity Chambers)

Our chambers are proudly designed and built in the USA which allows for faster fabrication turnaround.


Reliability, precision, and durability with every chamber.

Trusted by more leading brands


  • A123
  • AT&T Wireless
  • Alcatel Lucent
  • Allen-Bradley
  • Analog Devices
  • Apple Computer
  • Amazon
  • Ball Aerospace
  • Bechtel
  • Boeing
  • BF Goodrich
  • Broadcom
  • Brookhaven National Laboratory
  • Cisco Systems
  • Cree
  • Cypress Semiconductor
  • Delphi Automotive
  • Department of Defense
  • Exponent
  • Fabrinet
  • Garmin
  • General Electric
  • General Motors
  • Google
  • Hitachi
  • Intel
  • International Rectifier
  • JDS Uniphase
  • Johnson Controls
  • L3 Communications
  • Lawrence Berkley National Lab (USDOE)
  • Lockheed-Martin
  • M/A Com
  • Marvell Semiconductor
  • Maxim Integrated
  • Microsoft
  • Motorola
  • NASA
  • National Instruments
  • National Semiconductor
  • Naval Research Laboratory
  • Nokia
  • Northrop Grumman
  • nVidia
  • Orbital Sciences
  • Osram Sylvania
  • Qualcomm
  • Rockwell
  • Raytheon
  • Samsung Telecommunications
  • Sandia National Laboratories
  • Schlumberger Industries
  • Seagate
  • Silicon Laboratories
  • Skyworks Solutions
  • SpaceX
  • Stanley Black & Decker
  • Teledyne Electronics
  • Tesla Motors
  • Texas Instruments
  • Watlow Electric
  • Western Digital
  • and others!

Purchasing

Options


Every project includes budgets and timelines. We offer multiple purchase options to ensure you meet both. You can buy new, used, rent, or even lease our test chambers. We understand that sometimes you need to avoid the costs of owning, repairing, and calibrating portions or entire labs of test and measurement equipment. Nonetheless, a well-maintained test chamber can withstand the test of time. Many times, purchasing new is the best choice. Call, email, or connect with us. We enjoy talking about testing solutions to confirm you get what you need.
