• The system has an automated cooling fan that is activated simply by moving it into place.
• The spring loaded vacuum pik can be used to automatically lift the component off the PCB upon complete reflow.
• Laser centering indicator assists in positioning the PCB directly under the heaters and vacuum pik.
• Temperature probe is fitted with a ball/yoke positioner that is held in place with a magnet for maximum flexibility and to get to those hard to reach spots on the PCB.
• System is fitted with a built in vacuum wand that allows for manual removal if required.
• Pre-Heater monitoring prevents an operator from beginning a profile when the heater is not ready.
• Pre-Heater can be turned off or put into SetBack when system is not being used.
• Vacuum pik has built in theta adjustment for easy positioning of components.
• Made in the USA

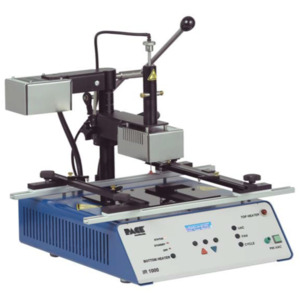

The IR 1000 is a remarkably flexible and effective rework system at a price point that can’t be beat! It is ideal for applications where variability in the work is common as well as for applications where the same work is being performed over and over and through-put is important.
The IR 1000 is capable of installing and removing passives, QFPs, SOICs, PLCCs, MLFs, TSOPs, and coarse pitched BGAs. The IR 1000 incorporates a 500 W top heater and a 400 W pre-heater. The system allows for simple one zone profiles up to more complicated multi zone profiles. It features PACE’s exclusive “Learn Mode” that assists the user with developing profiles. The system features a spring loaded, adjustable vacuum pik, a cooling fan, and a built-in, spring loaded, board-holder. The distance between the top heater and PCB can be adjusted and its vertical position is saved in the profile to ensure repeatability.
