FAKRA to AMC4 Cable Assemblies

Features:

• Ideal for space conscious designs
• Designed for automotive and loT applications
• AMC4 connectors snap-on coupling mechanism and low profile PCB connectors with small board footprints
• FAKRA features SMB connectors in color/key coded housings and up to 6.0 GHz with secure mating up to 100 mating cycles

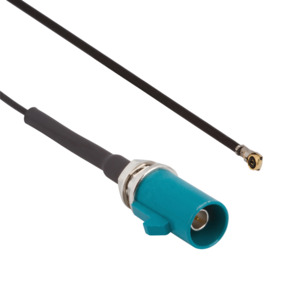

Fixed length FAKRA to AMC4 cable assembly product series combine the automotive industry standard FAKRA connector with the ultraminiature AMC4 connector on the flexible 1.13 mm micro coax cable. This combination allows for easy connect and disconnect and is ideal for automotive and loT applications where space constraints exist.

The FAKRA connector is color coded and mechanically keyed to prevent mis-mating during the installation process. The AMC4 connector features an ultra-low profile (0.6 mm height off the board with a mated height of 1 .4 mm) and an extremely small board footprint (2 mm x 2 mm). These connectors can be terminated with any other AMC4 or similarly keyed FAKRA, respectively. Standard FAKRA to AMC4 cable assemblies are available in the universal Z code (Water Blue) which has the versatility to mate with all other key codes.

Applications:

• Interior driving facing cameras
• Dedicated Short Range Communication (DSRC)
• Advanced Driver Assistance Systems (ADAS)
• Smart Boxes or Modules
• Remote Control Access
• Wireless Module Antenna Connections
