Fluke 9144-INSG Insert G

Features and Specifications

• Insert G is designed for use with 9144 Metrology Well (50 C to 660 C)
• Performs a Axial Gradient Test

The 9144-INSG for a Axial Gradient Test is used to collect As Found, Alignment, and As Left data. For soak times, number of measurements, specs, and other settings.

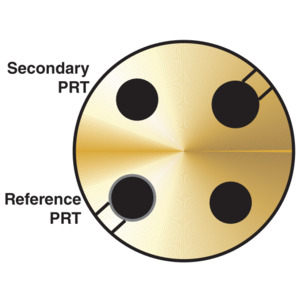

It requires the use of one reference standard, 1/4-inch PRT, and a secondary 3/16-inch diameter PRT with a sensor length 5 mm or less. Both the reference standard and the secondary PRT is inserted the full-depth of the well. See figure 20 in the 914X Technical Guide pdf for step-by-step instructions.

What's in the Box

• 9144-INSG Insert G
