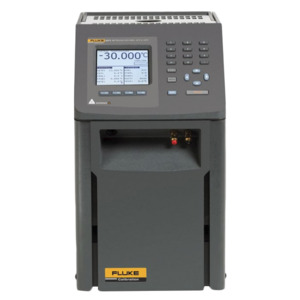

Fluke 9171 Field Metrology Well with W/ Insa

Features and Specifications

• Best-performing industrial heat sources (accuracy, stability, uniformity)
• Immersion depth to 203 mm (8 in)
• Range (at 23 C ambient) –30 C to 155C (–22 F to 311 F)
• Display accuracy +/-0.1 C full range
• Well depth 203 mm (8 in)
• Display LCD, Celcius or Fahrenheit, user-selectable
• Probe connection 4-wire with shield, 5-pin DIN connector
• Computer interface RS-232 included
• Traceable calibration (NIST)
• NVLAP accredited (built-in reference input only)
• Optional ITS-90 reference input reads PRTs to +/-0.006 C

Fluke's Hart Metrology Wells 9171 is engineered to serve as reliable heat source, suitable for both laboratory and field settings. They come with a calibrated display and an optional built-in reference thermometer input (marked with "-R"). Metrology Wells may also function as reference standards.

These Metrology Wells are equipped with interchangeable probe sleeves that can accommodate probes of various diameters. The controller of the Metrology Wells employs a PRT sensor and thermoelectric modules or heaters to maintain consistent, uniform temperatures across the block.

The LCD display provides a continuous readout of several important operating parameters, including the block temperature, block stability, heating and cooling status, and the current set-point. The temperature can be conveniently adjusted to any value within the calibrator's specified range using the control buttons.

Metrology Wells are designed to deliver laboratory-grade performance in any location. When used correctly, these instruments can provide ongoing precise calibration of temperature sensors and devices.

What's in the Box

• 9170 Metrology Well
• 9170-INSX Insert (X=A, B, C, D, E, or F)
• Power Cord
• RS-232 Cable
• Getting Started Guide
• User’s Guide
• Report of Calibration and calibration label
• Well Insulator
• Tongs (insert removal tool)
