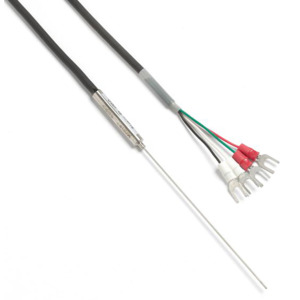

Fluke 5622-16-D Fast Response Platinum Resistance Thermometers

Features and Specifications

• Termination: D (5-pin DIN for Tweener Thermometers)
• Sheath: 200 x 1.6 mm (8 x 0.06 in)
• Immersion Depth: 32 mm (1.25 in)
• Temperature Range: –200 C to 350 C
• Nominal RTPW: 100 Ohm
• Cable: PVC, 4-wire cable, 2 meters long, 90 C max temp

Compatible With

• 1523 and 1524 Handheld Thermometers
• 1529 Benchtop Thermometer

5622-16-D Overview

For special temperature measurement applications requiring fast response or short immersion over a wide temperature range, Fluke's 5622-16-D Fast Response Platinum Resistance Thermometers (PRT) is a perfect solution. Getting into shallow or tight places is not a problem, and because it can handle temperatures from -200 C to 350 C, it's more versatile than most thermistors.

The 5622 Series

The Fluke Calibration 5622 series of fast response PRTs includes four models with stainless steel sheaths ranging from 0.5 to 3.2 mm (0.02 to 0.125 in) in diameter. Because these high-quality wire-wound sensors come in small packages, heat transfer to the sensors occurs quickly. Time constants from 0 C to 100 C are as fast as 0.4 seconds.

Specifications for the 5622-00-X models are as follows, where 00 = Sheath and X = Termination:

Sheath:

• 5622-05: 100 x 0.5 mm (4 x 0.02 in)
• 5622-10: 100 x 1.0 mm (4 x 0.04 in)
• 5622-16: 200 x 1.6 mm (8 x 0.06 in)
• 5622-32: 200 x 3.2 mm (8 x 0.13 in)

Termination:

• A (INFO-CON for 914X)
• B (bare wire)
• D (5-pin DIN for Tweener Thermometers)
• G (gold pins)
• J (banana plugs)
• L (mini spade lugs)
• M (mini banana plugs)
• P (INFO-CON for 1523 or 1524),
• S (spade lugs)

What's in the Box

• 5622-16-D Fast Response PRT
