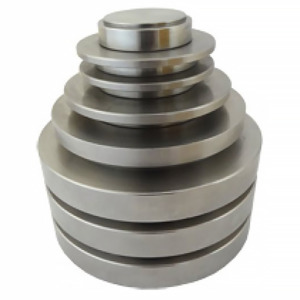

Fluke CWS3116-PSI Conversion Weight Set

Features and Specifications

• For the 3116-PSI Deadweight Tester
• Single piston oil units - model range 3116-PSI 200 to 20,000 psi
  • Weight Carrier: 200
  • Weights: (qty 4) Increment 20, (qty 1) Increment 100, (qty 4) Increment 200, (qty 1) Increment 1000, (qty 9) Increment 2000,

About Conversion Weights for the P3100 Series of Deadweight Testers

Conversion weight sets provide additional units of measure without purchasing an additional deadweight tester. A set of conversion weights can be supplied, marked in the required pressure unit, and adjusted to the correct mass for use with the existing piston(s).

The set includes (where applicable) a replacement low-pressure weight carrier table, and a replacement high-pressure weight carrier ring. These items are simply exchanged for the original items when using the conversion weights. Calibration is carried out as described above, with logical pressure increments throughout the operating range, avoiding the need to perform pressure unit conversion calculations.

*See weight increments for deadweight testers pdf documentation, as well as the P300 Series manual for more information.
