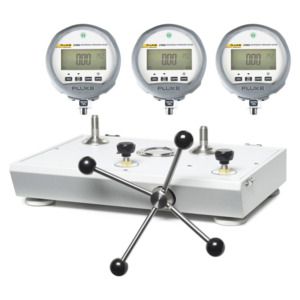

Fluke P5513-2700G-3 Pneumatic Comparison Test Pump

P5513 Features and Specifications

• Pressure range 0 to 3,000 psi (210 bar) (20 MPa)
• High pressure pneumatic operation
• Screw press for fine pressure adjustments
• High quality needle valves for fine control
• Test port adapters which require no PTFE tape or wrenches
• Can be used with the 2700G Reference Pressure Gauge to provide a complete calibration solution

The P5513 pneumatic comparison test pump is designed for testing pressure measuring instruments against master test instruments. This cost effective instrument provides precise control for important calibration requirements and include many features found in our popular line of pneumatic deadweight testers.

Make it a Pressure Calibrator

The Fluke Calibration P5513 Pressure Comparator when combined with the 2700G Reference Pressure Gauges becomes an easy-to-use alternative to traditional deadweight testers that covers a wide range of workload. For convenience, the P5513 is bundled together with selected 2700G Reference Pressure Gauges for a complete bench top pressure calibration solution. These pressure calibrators provide the accuracy, reliability, and capability you need to calibrate dial gauges, digital test gauges and pressure transmitters.

2700G-G20M Gauges Features

• Range: 0 to 3000 psi, 0 to 20 MPa
• Resolution: 0.1 psi, 0.01 bar
• Burst Pressure: 10 000 psi, 70 MPa
• Media Compatibility: Any non-flammable, non-toxic, non-explosive, non-oxidizing liquid or gas compatible with 316 stainless steel
• Uncertainty (k=2): Positive pressure +/- 0.02 % FS / Vacuum +/- 0.05 % FS
• Pressure connection: 1/4 in NPT Male
• Housing/weight: Cast ZNAL/0.56 kg (1.22 lb)
• Display 5-1/2 digits, 16.53 mm (0.65 in) high, 20-segment bar graph, 0 to 100 %
• Power: Three AA alkaline batteries
• Battery life: 75 hours

2700G-BG7M Gauges Features

• Range: 0 to 3000 psi, 0 to 20 MPa
• Resolution: 0.1 psi, 0.01 bar
• Burst Pressure: 10 000 psi, 70 MPa
• Media Compatibility: Any non-flammable, non-toxic, non-explosive, non-oxidizing liquid or gas compatible with 316 stainless steel
• Uncertainty (k=2): Positive pressure +/- 0.02 % FS / Vacuum +/- 0.05 % FS
• Pressure connection: 1/4 in NPT Male
• Housing/weight: Cast ZNAL/0.56 kg (1.22 lb)
• Display 5-1/2 digits, 16.53 mm (0.65 in) high, 20-segment bar graph, 0 to 100 %
• Power: Three AA alkaline batteries
• Battery life: 75 hours

2700G-BG700K Gauges Features

• Range: -12 psi to 100 psi, -80 kPa to 700 kPa
• Resolution: 0.01 psi, 0.0001 bar
• Burst Pressure: 1000 psi, 7 MPa
• Media Compatibility: Any liquids or gases compatible with 316 stainless steel
• Uncertainty (k=2): Positive pressure +/- 0.02 % FS / Vacuum +/- 0.05 % FS
• Pressure connection: 1/4 in NPT Male
• Housing/weight: Cast ZNAL/0.56 kg (1.22 lb)
• Display 5-1/2 digits, 16.53 mm (0.65 in) high, 20-segment bar graph, 0 to 100 %
• Power: Three AA alkaline batteries
• Battery life: 75 hours

What's in the Box

• P5513-2700G-3 Pneumatic Comparison Test Pump
• Lid for P5513
• Case for P5513
• 3 Gauges (2700G-G20M, 2700G-BG7M, 2700G-BG700K)
