Pomona

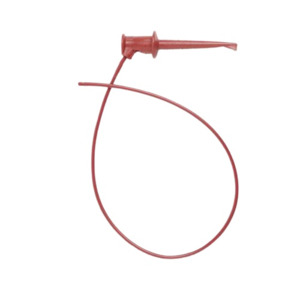

Pomona 3780-60-2 Minigrabber Test Clip, One End Only, 60" Long, 5 A, 300 V, Red, 3780 Series
Our Part #34271.1
Condition:New
Mfr Part #3780-60-2
Pomona
Pomona 3780-60-2 Minigrabber Test Clip, One End Only, 60" Long, 5 A, 300 V, Red, 3780 Series
Our Part #34271.1
Condition:New
Mfr Part #3780-60-2
$6.29EACH
- Description
- Specifications
- Documents
- Minigrabber® Test Clip (one end only) allows customization of the open end.
- Grabber attaches to terminals sizes up to .060” (1,5mm).
- Hook material is gold-plated Beryllium Copper for superb strength and low contact resistance to ensure signal integrity.
- For added safety, the grabber body material is fire-retardant Nylon 6.
- Stainless steel grabber compression spring resists corrosion and retains a firm feel throughout the life of the grabber.
- Flexible 20 gauge multi-stranded wire is molded directly to the grabber actuator cap and pin tip plug for durability.
Brand: Pomona
Series: 3780 Series
Cable Length: 60"
Color: Red
Contact Finish: Gold Plated
Contact Material: Beryllium Copper
Current: 5 A
Insulation: Nylon 6
Material: Stainless Steel
Maximum Temperature: 216°F
Voltage Rating: 300 V
Wire Material: PVC
Wire Size AWG: 20 AWG
$6.29EACH
