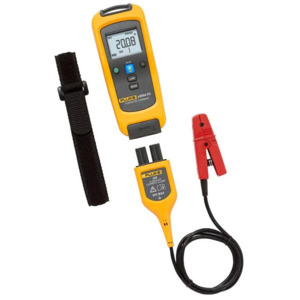

Fluke FLK-A3003FC Current Meter

Features and Specifications

• Measures from 10 A to 2000 A DC
• Max voltage between any terminal and earth ground: 1000 V dc or ac rms
• Frequency Range: 99.99 Hz
• Frequency Resolution: 0.01 Hz
• Large jaw size: 64 mm (for measuring large, high current conductors)
• Display: LCD
• Battery life: 250 hours minimum
• RF communications: 2.4 GHZ ISM Band
• Use the logging function for the recording and saving up to 65,000 measurements
• Isolate intermittent events or record signal fluctuations without even being there using the log function on the meters
• Wireless technology allows connectivity between your phone, PC, and all Fluke Connect enabled test tools
• Record and log data over time, and share test data using the Fluke Connect app with ShareLive

Fluke's FLK-A3003FC DC Current Clamp Meter functions as the mobile hub, displaying readings from up to three meter modules tools simultaneously from up to 20 meters away. It is a fully functional current clamp meter that wirelessly relays measurements to other Fluke Connect enabled master units, listed below:

• Fluke 3000 FC Digital Multimeter
• Fluke Ti200/300/400 Infrared Camera
• PC via optional pc3000 FC Adapter
• Fluke Connect Mobile app
• TiX560 and TiX520

What's in the Box

• DC current module
• Batteries
• Hanging strap magnet
• Quick start guide
