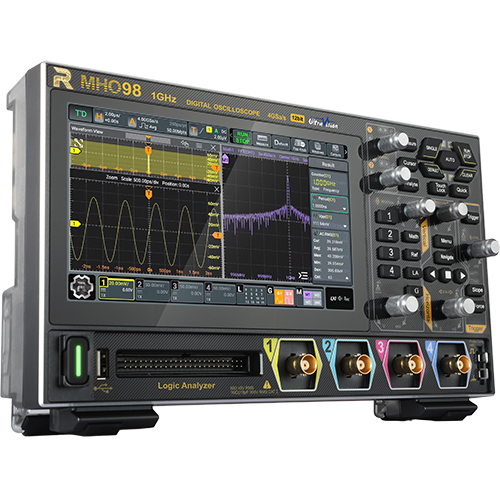

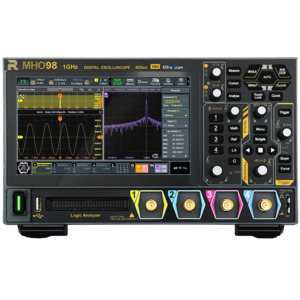

MHO98 Series Digital Oscilloscopes, 12 Bit High Resolution for High Speed, High Accuracy Applications

Product Features

• 12-bit resolution
• Max. 1 GHz analog bandwidth, 4 analog channels
• 16 digital channels, 200 MHz PLA2216 logic analyzer probe (optional)
• Real-Time sample rate: up to 4 GSa/s
• Max. memory depth of 500 Mpts
• Vertical sensitivity 200 µV/div to 10 V/div
• Max. waveform capture rate: 1,000,000 wfms/s
• Digital phosphor display with real-time 256-level intensity grading
• Standard 2-channel, 100 MHz Function/Arbitrary Waveform Generator (Bode plot supported)
• Supports histogram, digital signal analysis, etc.
• Supports waveform search and navigation functions, capable of debugging the signal anomalies faster
• 7” (1024x600) HD touch screen
• Flex knob brings user-friendly experience
• Standard USB2.0 Device & Host, LAN (100M) and HDMI interfaces
• Novel and delicate industrial design, easy to operate
• Supports online upgrade of software version

The MHO98 is RIGOL’s newly launched economical oscilloscope. Compact in size, it features 1,000,000 wfms/s capture rate, max. memory depth of 500 Mpts, 12-bit high resolution and low noise.

The product supports 16 digital channels. One instrument can make an analysis on both the analog and digital signals to meet the embedded design and test scenarios. With an affordable price equivalent to purchasing an entry-level instrument, you can access the auto serial and parallel bus analysis, bode plot analysis, and other functions to meet the test demands in the R&D, education, and science research fields.

Deliver Much Better Performance than the Same Level Products

• 1 GHz & 4 GSa/s sample rate enable you to address the high-speed acquisition challenge, accurately recovering the original signal

• 12-bit high-precision ADC, 4096 vertical digitalizing levels, capable of capturing signal details easily

• 500 Mpts memory depth enables you to capture signals for a long time of duration, record high-speed and complex events, giving you full insights into the full details of high-signals

• Standard 100 MHz 2-channel function/arbitrary waveform generator, 16-channel logic analyzer probe and LA function, complete digital protocol decodings empower you with a full function test tool

• 7-inch HD touch screen gives you smooth touch-enabled screen operation, easy to operate, efficient in work

Unique Number Grants Each Distinguished Customer with Unique Identity and Value

• 24K gold nameplate, a commemoration for keeping our original intention of making RIGOL products

• Each MHO98 has a unique number, imprinted with its unique identity and glory

Artwork on the Bench

• High-quality metal enclosure and metal knobs, 3D plastic bevel and emboss design

• Transparent rear panel design enables you to view the precision electric circuit structure inside

In The Box

• Power Adapter Conforming to the Standard of the Destination Country

• Ground Cable

• USB Cable

• RP3500A - Qty 4 Passive HighZ Probes (500 MHz)

• PLA2216 - 16-channel Logic Analyzer Probe

• BAG-800 - Portable Instrument Bag
