Fluke FLUKE-GFL-1500 Solar Ground Fault Locator Kit

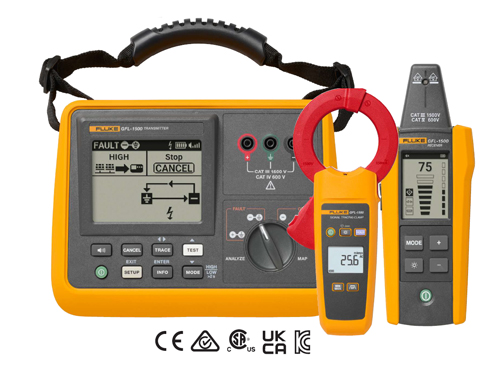

The GFL-1500 Ground Fault Locator is a three-piece troubleshooting system designed to optimize technician workflow in the field, enabling faster and more confident fault resolution. This gives site managers greater assurance in system performance and uptime. The GFL-1500 system consists of the GFL-1500 Transmitter, GFL-1500 Receiver, and GFL-1500 Signal Tracing Clamp.

Features and Highlights

• FaultTrack Technology: Identify and locate active ground faults anywhere in the DC system with an easy-to follow traceable signal.

• Reduce the amount of time it takes to locate active ground faults and decrease your exposure to electrical hazards with non-contact signal tracing.

• Integrated Diagnostic Function(s):

  • Analyze - Provides diagnostic details like location, resistance range, voltage to ground

  • Fault Tracing - Real-time audio-visual feedback for localization of the fault within array

  • Open Circuit - Locate breaks in wiring

  • Mapping - Identify and confirm string layout

• Designed for real-world conditions, the GFL-1500 is intuitive to operate, quick to deploy, and built for harsh environments.

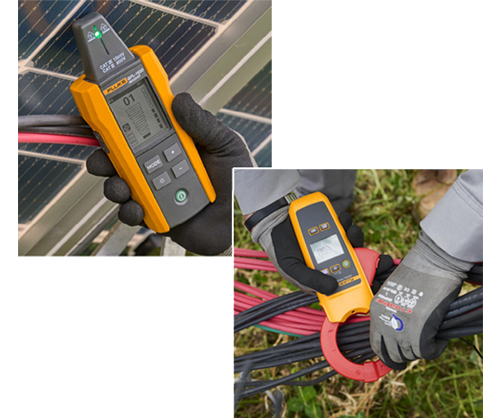

• Current clamp can identify faulted combiner or string without disconnections, even in noisy environments

Revolutionize Fault Location

By replacing complex, manual diagnostics with an easy-to-follow trace signal, the GFL- 1500 Ground Fault Locator streamlines fault isolation, helping teams restore system operation quickly and effectively. Whether you're working at the inverter, combiner, or module level, the GFL-1500 has been rigorously tested for safety and durability to provide a rugged, safe, fast, and reliable solution for identifying ground faults in high-voltage environments—empowering technicians to work confidently and efficiently in the field.

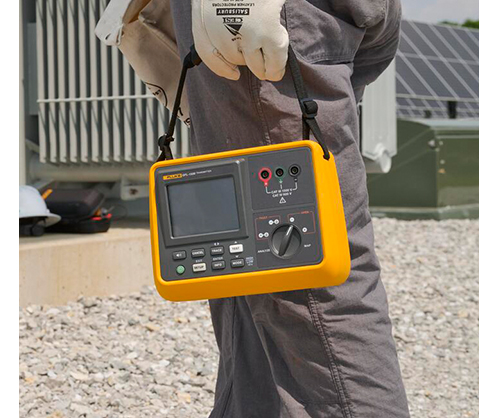

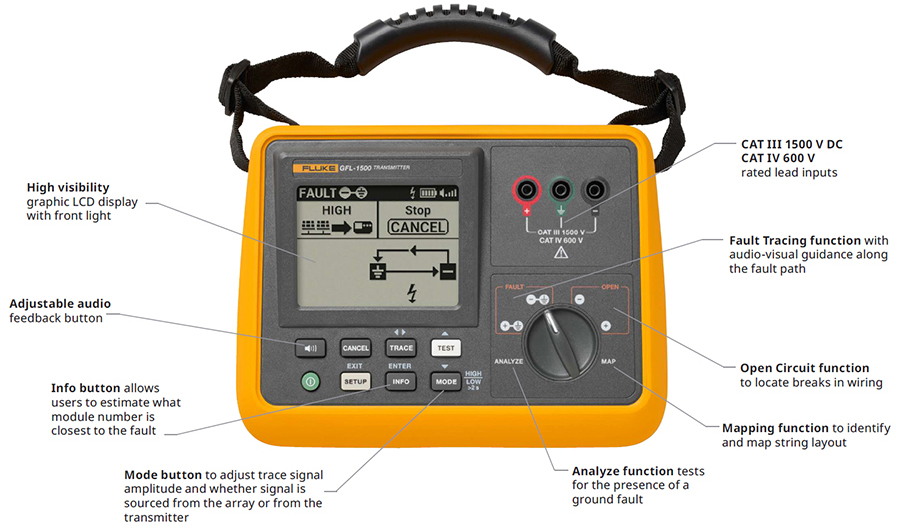

Transmitter

• Operating voltage: 1500 VDC / 600 VAC

• Measurement category: CAT III 1500 VDC / CAT IV 600 V

• Trace signal indications: Graphical display, audible beep

• Trace signal op frequency: fault & map: 6.25 kHz, open: 32.764 kHz

• Graphic LCD Display

• Meets IEC 61010-1 and 61010-2-030

Receiver

• Operating voltage 1500 VDC / 600 VAC

• Measurement category: CAT III 1500 VDC / CAT IV 600 V

• Trace signal indications: Numeric, bar graph display,
  audible beep, LED

• Trace signal op frequency: fault & map: 6.25 kHz, open: 32.764 kHz

• Graphic LCD Display

• Meets IEC standard 61010-1

Current Clamp

• For use on insulated conductors

• Rated: 1500 V

• Range: 150 mA

• Resolution: 0.1 mA

• Maximum conductor diameter: 61 mm (2.4 in)

• TRMS digital multimeter

• Wireless

• Back lit Segment LCD Display

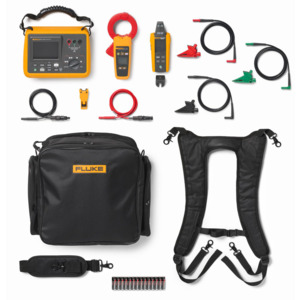

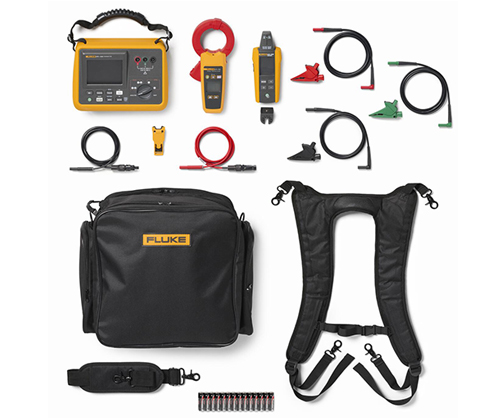

What's in the Box

• GFL-1500 Transmitter

• GFL-1500 Receiver

• GFL-1500 Current Clamp

• MC4 Test Leads, 1500 V rated test leads

• Alligator clips

• MC4 unlocking tool

• Soft carrying case

• Backpack style shoulder strap

• AA Alkaline batteries
