HDPQ Xplorer400 Plus 10A Package, Qty (4) TR-2510B (1A-10A CT) clamp CTs

• Package HDPQ-P-X4A10PKG
• 10A clamp package (Qty 4 1A to 10Arms CT)
• Detects & records sags/dips, swells, interruptions, transients, harmonics, flicker, RVC and more
• Tests 400 Hz & 50/60Hz - Specialized Aircraft, Naval and Other Applications AND Standard Power Monitoring
• High-Speed Transient Capture - Don’t Miss a PQ Event
• IEC 61000-4-30 Class A Edition 3 PQ compliant (certificate)
• Power Quality, demand & energy analysis - Complete Power Monitoring Surveys
• Measures, records and triggers on power parameters such as V, I, W, VA, VAR, PF, demand, energy & more
• 7" color, touch LCD display
• Dran-View 7 Software - Powerful Data Analysis, Reporting & Remote Control

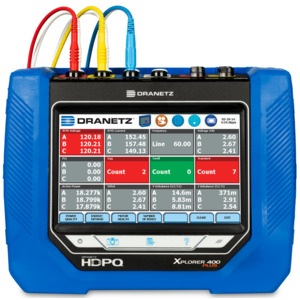

The Dranetz HDPQ Xplorer 400 Plus (portable) power quality analyzer takes PQ, Demand and Energy monitoring to new heights by adding 400Hz monitoring capabilities to the already powerful Dranetz HDPQ Xplorer Plus. The Dranetz HDPQ Xplorer 400 Plus is designed for applications such as aviation, naval, military, etc. requiring 400Hz capabilities that are not available in most PQ and Energy analyzers which typically only measure 50/60Hz. The Dranetz HDPQ Xplorer 400 Plus is also an all-purpose tool that can be used for any traditional 50/60Hz application. In addition to the 400Hz applications, the Dranetz HDPQ Xplorer 400 Plus is perfect for applications such as power quality surveys, voltage and current transient studies, fault recording, inrush, motor testing, harmonic analysis, advanced distortion analysis, demand/energy/load studies, and many more.

The Dranetz HDPQ Xplorer 400 Plus offers the best in class PQ monitoring capabilities. It measures to all current industry standards, including IEC 61000-4-30 Class A Edition 3, IEC 61000-4-7, IEEE 1159, IEEE 519:2014, IEEE 1459, and more. With its high-speed transient data capture (1 microsecond/channel) capabilities, this 8-channel workhorse won’t miss a PQ event. It simultaneously captures and characterizes thousands of parameters by using a range of standard and customizable operating modes. The unique measurement capabilities include the capture of low-medium-high frequency transients through peak, waveshape, RMS difference, and adaptive high-speed sampling, as well as power measurements to clearly characterize harmonics, non-sinusoidal, and unbalanced systems. The Intelligent AnswerModule feature provides a consultant-like analysis of sag directivity, capacitor switching transient identification/directivity and motor analysis/reporting.

The Dranetz HDPQ Xplorer 400 Plus enables users to review data and change settings remotely from virtually any smartphone, tablet, and mobile device, as well as with traditional PC and MAC laptops and desktops. Just hook up the instrument, close the cabinets to the ‘safe’ environment, and review data and control the instrument using either the VNC interface in our Dran-View 7 software or a free VNC client on your Smartphone or Tablet from anywhere with connectivity to the instrument.

In The Box
10A clamp package (Qty 4) TR2510B

• SCC-HDPQ Soft Carry Case:
  Individual storage compartments for the instrument, CT’s, voltage cables and more.
  Dimensions: 12” L x 18” W x 9” D (30.5cm L x 45.7cm W x 22.9cm D)
• 4 – TR-2510B 1A to 10Arms CT:
  1.5V output, Dranetz Hypertronics connector, 3 meter cable, 15mm dia. maximum conductor size.
• Voltage Cable Set 118970-G1:
  Includes: 8 – Six ft. (183cm) measurement cables: 1 Red, 1 Yellow, 1 Blue, 1 Gray, 4 White; 4 – Black alligator clips; 4 – White alligator clips; 4 – Black 25 cm stackable jumpers.
  Compatible with portable and permanent systems with 4mm voltage connectors.
• AC Adapter 118317-G1:
  AC Adapter: 100-240Vac 50/60Hz, includes: US, EURO, UK, AUSTRALIA and CHINA plug adapters.
• Dran-View® 7 DV7E-PX:
  Dran-View is a Windows based software package that enables power professionals to simply and quickly visualize and analyze power and energy monitoring data.
