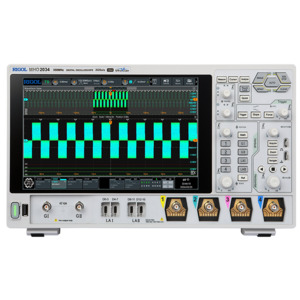

MHO2000 Series Digital Oscilloscope, 350 MHz Bandwidth, 4 Analog Channels and 1 External Trigger Channel

Product Features

• Based on RIGOL's brand new self-developed Centaurus technical platform

• 12-bit resolution

• Max. 350 MHz bandwidth, 4 analog channels, and 1 external trigger channel

• Standard configuration of 16 digital channels (required to purchase the logic analyzer probe)

• Real-time sample rate: up to 2 GSa/s

• Max. memory depth 500 Mpts

• Vertical sensitivity up to 200 μV/div

• Max. waveform capture rate of 1,000,000 wfms/s (in fast recording mode)

• Arbitrary/Function Waveform Generator (AFG), power analysis, histogram, digital signal analysis, Bode plot, and protocol decodings

• Search and navigation functions enable users to quickly search for the signals with exceptions and locate them accurately

• 256-level intensity grading display, with digital real-time fluorescence technology

• 10.1" 1280*800 high-definition touch screen

• Brand new Flex knob brings friendly user experience

• Standard configuration of USB Device, USB Host, LAN, HDMI interfaces

• Battery pack-powered, convenient to charge anytime and anywhere, providing great feasibility for measurement

• Online upgrade

• Standard configuration of the photoelectric encoder operating knob to improve the service life of the instrument

The MHO2000 series is a high-resolution 4-CH digital oscilloscope designed for the vast mainstream digital oscilloscope market to meet the design, debugging, and test demands. It is developed based on RIGOL's brand new self-developed Centaurus technical platform. Its 1,000,000 wfms/s waveform capture rate (in fast recording mode), 500 Mpts memory depth, 12-bit resolution, excellent noise floor and vertical measurement accuracy can meet the test demands for higher accuracy. The MHO2000 series digital oscilloscope supports AFG, digital signal analysis, Bode plot, and other functions. It is powered by battery pack, applicable for various complex test scenarios.

• For engineers, educators, and students that need mixed-signal measurement capabilities…

• To conduct embedded debugging, bus testing, or power supply evaluation…

• The MHO2000 scopes offer rich triggering and decoding functionality in a high-resolution instrument.

• Unlike oscilloscopes from Tektronix, R&S, Keysight, and Siglent…

• The RIGOL MHO2000 scopes deliver 2 Gsa/s sampling across all channels, 12-bit vertical resolution, 4 analog channels, 16 digital channels and an optional 2-channel integrated AFG.

• Passive High-impedance Probe x4 PVP2350

The following part numbers can be used to upgrade MHO2000 series oscilloscopes.

• MHO2000-AWG - Integrated 2-CH 50 MHz Function Generator

• MHO2000-PWRA - Power Analysis Option

• MHO2000-AUDIOA - I2S Audio Bus Triggering & Analysis Options

• MHO2000-AUTOA - CAN-FD, LIN Bus Triggering & Decoding

• MHO2000-FLEXA - FlexRay Triggering & Decoding Option

• MHO2000-AEROA - MIL-STD-1553 Bus Triggering & Decoding

• MHO2000-BND - Bundle Option: PWRA, AUDIOA, AUTOA, FLEXA, AEROA, AWG

In The Box

• Power Cord Conforming to the Standard of the Destination Country
• USB Cable
• Passive High-impedance Probe x4 PVP2350
• Certificate of Calibration
• Power Cord Conforming to the Standard of the Destination Country
• USB Cable
• Passive High-impedance Probe x4 PVP2350
• Certificate of Calibration
