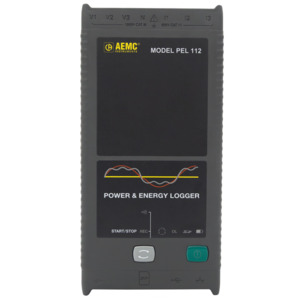

PEL 112 Phase Power and Energy Logger, No Sensors

Features and Specifications

• No clamp sensors are provided for this version

• Single-, dual- (split-phase) and three-phase

• 10 to 1,000 V AC/DC voltage range (probe dependent)

• Current range of 5 mA to 12 kA AC / 50 mA to 1300 A DC (probe dependent)

• +/- 0.2% R +/-0.2V voltage accuracy

• 3 voltage and 3 current channels with auto recognition
  of connected current sensors and probes

• 600 V CAT IV / 1000 V CAT III

• Expandable storage records data on an SD card (up to 32 GB)

• Install without cutting off the power supply

• Powered directly from the phase, eliminating battery reliance

Supports Negative Temps! Great for Use in Cold Rooms (Down to -4 F)

The PEL 112 is a simple-to-use, single-, dual- (split-phase) and three phase power and energy logger with 3 voltage and 3 current channels, 32 alarms, multiple connectivity options such as USB, Ethernet, Wi-Fi, remote access and real-time monitoring. The PEL 112 can motor diagnostics assesses motor speed, efficiency and torque without mechanical sensors. It's perfect for electricians, engineers, and contractors involved in building and system monitoring, upgrades, and energy audits for both residential and general purposes. It efficiently measures, records, and analyzes essential energy data, allowing for confident report generation with minimal setup time and effort, offering both standard and customizable reports.

Applications For Use Include

• Predictive & preventive maintenance

• Energy audits

• Cost optimization

• IT infrastructure maintenance

Android App Available for FOR PEL 112, 113 & 115

• Configure measurements and recordings

• Display data in real-time

• For use on devices with an Android platform

• Software sensors providing all comprehensive and instantaneous motors electrical parameters such as rotation speed, efficiency and torque

PEL 110 Series Three-Phase Power and Energy Loggers

The PEL 100 series are equipped with all the necessary features for logging power and energy data from various electrical power networks worldwide, supporting 17 different network configurations. These energy loggers measure and record three True RMS voltage and current inputs, as well as Watts, VARS, VA, and Energy (kWh and kVA). They also calculate and record Power Factor (PF), Displacement Power Factor (DPF), Crest Factor, Frequency, and Total Harmonic Distortion (THD). Additionally, they can record individual harmonic percentages from the 1st to the 50th harmonic based on the operator's preference.

DataView Analysis and Reporting Software

• Display and analyze real-time data on your PC
• Configure functions and parameters from your PC
• Customize views, templates and reports to your exact needs
• Create and store a complete library of configurations that can be uploaded as needed
• Zoom in and out and pan through sections of the graph to analyze the data
• Download, display and analyze recorded data
• Display waveforms, trend graphs, harmonic spectrums, text summaries, transients, event logs and stored alarms
• Print reports using standard or custom templates you design
• Free updates available on our website www.aemc.com

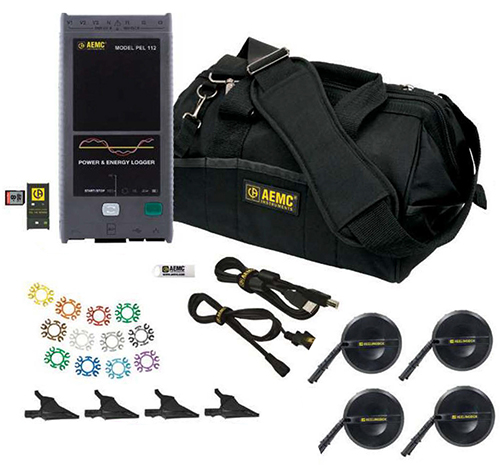

What's in the Box

• PEL 112 Logger with no sensors

• Small classic tool bag

• (4) 10 ft black test leads in reeling box

• (4) black, alligator clips

• Set of (12) color-coded input ID markers

• 8 GB SD-card, (installed)

• USB SD-card reader

• USB type A to type B cable

• 115 V power cord

• NiMH AAA 8.4 V battery (installed)

• Quick start guide

• USB drive with DataView software and user manual
