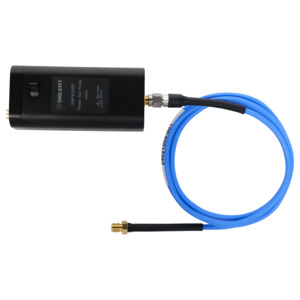

Siglent SAP4000P Power Rail Probe

Features and Specifications

• Bandwidth (Probe only) Greater than 4 GHz
• Low frequency input resistance: 20 kilohm
• High frequency input resistance: 50 ohm
• Offset voltage range: +/- 24 V
• Attenuation ratio (DC): Divide 1.1
• Offset voltage accuracy: Less than 3%
• DC gain accuracy: Less than 3%
• Input dynamic range: +/- 600 mV
• Noise: 1.1 times the oscilloscope noise before connecting the probe
• Damage voltage: 35 V

The SAP4000P Power Rail Probe offer high bandwidth, high sensitivity, very low noise, an extra-large offset compensation and adopts SAPBus interface without external power supply. It is excellent probe for power integrity measurements and works with oscilloscopes that have the SAPBus interface, including the SDS3000X HD, SDS5000X, SDS6000 Pro, and SDS7000A series. Once connected, the oscilloscope can automatically detect the probe model and adjust display scales and measurements. The oscilloscope's user interface displays basic probe information, such as the model and serial number. After connection, the maximum vertical scale is 200 mV/div, and the DC offset can be adjusted between +/- 24V.

What's in the Box

• SAP4000P Power Rail Probe includes:
  • Probe Amplifier (1)
  • Main Cable (1)
  • Pigtail Cables (3)
  • SMA-M Cable (1)
  • High Speed Probe Browser (1)
  • Low Speed Probe Browser Kit (1)
  • SMA Dual Lead Adapter (1)
  • Micro SMD Clip (1)
  • Two-legged Positioner PP201 (1)
