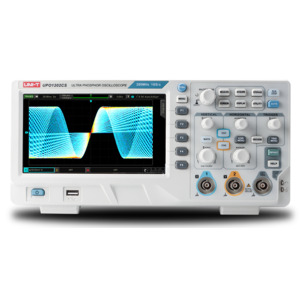

Uni-T UPO1202CS Digital Phosphor Oscilloscope
Features and Specifications
- Bandwidth: 200MHz
- Analog Channels: 2
- Real-Time Sample Rate: 1GSa/s
- Max. Memory Depth: 56Mpts
- Waveform Capture Rate: 500,000wfms/s
- Display: 7-inch WVGA (800 × 480) TFT LCD
- Interfaces: USB Host, USB Device, LAN, EXT Trig, AUX Out(Trig Out, Pass/Fail)
- Max. Input voltage(1MΩ); 400V Max(DC+Vpeak)
- Support SCPI programmable instrument standard command
- Support WEB access and control
UPO1202CS Overview
The Uni-T UPO1202CS Digital Phosphor Oscilloscope is a versatile and cost-effective tool that enhances your electronic and electrical projects across various fields such as electronic design, debugging, education, and industrial design. This advanced instrument can be easily connected and remotely controlled through a web page interface, providing the convenience of dual-platform operation via PC and mobile devices. This feature eliminates the need for local program installations, saving you valuable time and space.
The UPO1202CS is equipped with 1Mpts FFT sampling points, enabling you to perform detailed frequency domain signal analysis. You can customize spectrum analyzer functions such as frequency range, detection mode, and spectrum marking for a comprehensive signal examination. The device excels at displaying waveforms from different clock sources, even when their frequencies significantly differ, simplifying waveform parameter analysis and making it convenient to work with diverse signals.
The oscilloscope also offers real-time decoding of serial bus signals with its innovative hardware decoding technology. Its deep storage ensures millisecond-level decoding, eliminating extended waiting times. You can enjoy uninterrupted waveform refresh rates and vivid digital fluorescence waveform displays. The event list provides decoded data along with timestamp information, offering enhanced insights into your serial bus signals.
The UPO1202CS excels with its impressive 56M sampling points per channel, maintaining a high sampling rate across a wide time base range. This feature enables detailed examination of waveforms while retaining an overarching view, significantly enhancing your ability to capture and analyze abnormal waveforms. Leveraging advanced digital signal parallel processing technology, the UPO1202CS provides an exceptional capture rate among its peers, effectively minimizing signal loss and ensuring precision in capturing even the most elusive abnormal signals.
Whether you're a seasoned engineer or a budding enthusiast, the Uni-T UPO1202CS Digital Phosphor Oscilloscope empowers you to tackle complex tasks with confidence. It redefines what's possible in your electronic and electrical projects, helping you elevate your projects and capture the essence of innovation. Your next breakthrough is within reach with the UPO1202CS.

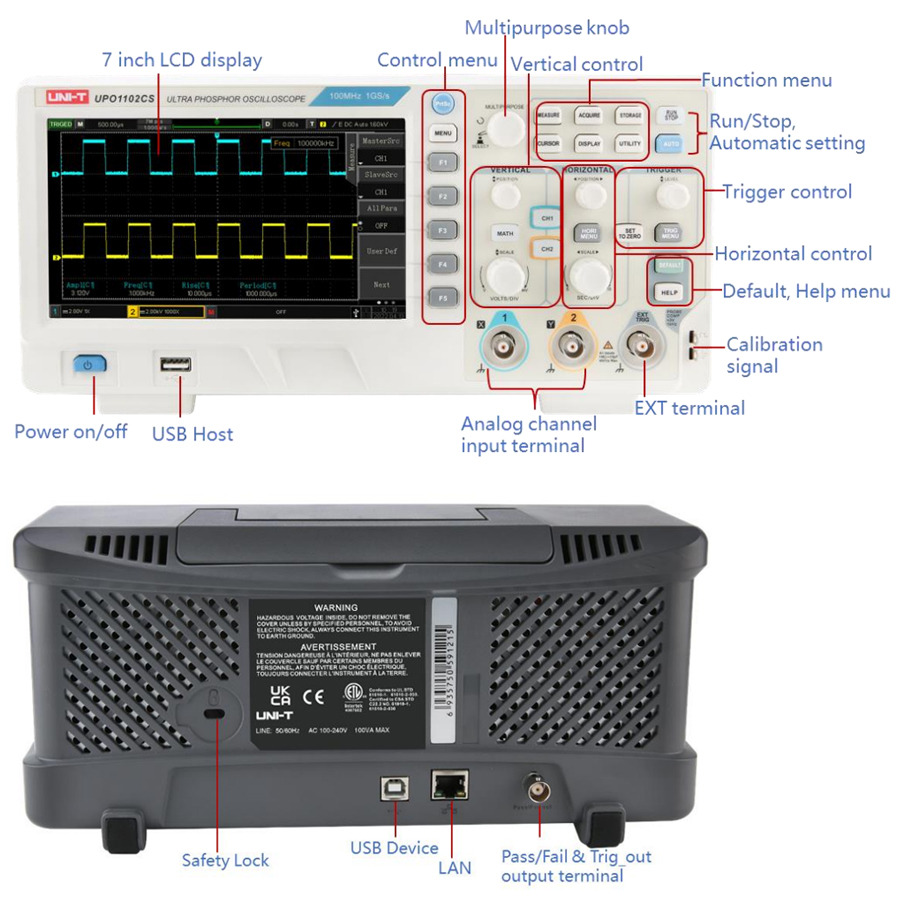

UPO1000CS Series Panel Features
The UPO1000CS Series
The UPO1000CS series is a versatile and affordable digital phosphor oscilloscope. It has a wide range of applications, including electronic and electrical design, debugging, education, and industrial design. This series utilizes parallel digital signal processing technology, significantly enhancing data processing speed and waveform capture rate. Its unique Ultra Phosphor technology can display the cumulative effect of the tested signal as a layered afterglow. Unlike conventional digital storage oscilloscopes, digital phosphor oscilloscopes in the UPO1000CS series can display three-dimensional waveform data, including amplitude, time, and signal intensity. The Fast Acquire technology can precisely detect irregular events like video, jitter, noise, and runt signals.
Model | Analog Channels | Analog BW |
UPO1102CS | 2 | 100 MHz |
UPO1202CS | 2 | 200 MHz |
What's in the Box
- UPO1202CS Oscilloscope
- Power cord
- USB cable
- Probes
