Pulse Measurement Software Option for SNA5000A Series

• Pulse measurement software option
• For use with Siglent SNA5000A series Vector Network Analyzers
• Pulse measurements are used to test devices that cannot be tested using continuous signals

The Siglent SNA5000-PM is pulse measurement (PM) software for use with Siglent SNA5000A series Vector Network Analyzers. Pulse measurements are used to test devices that cannot be tested using continuous signals, such as GSM power amplifiers.

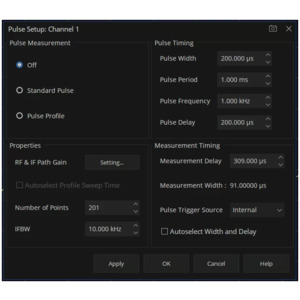

Pulse measurement settings:

• Off: Source and receivers are NOT pulsed
• Standard Pulse: With pulsed RF, the SNA can be configured to sweep in frequency, power sweep, and CW time.
• Pulse Profile: Pulse profile measurements provide a time domain (CW frequency) view of the pulse envelope.
