Four Channel Rework System with 4 Tools (Shop Air Not Required)

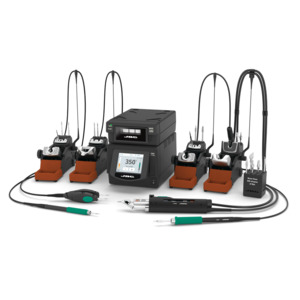

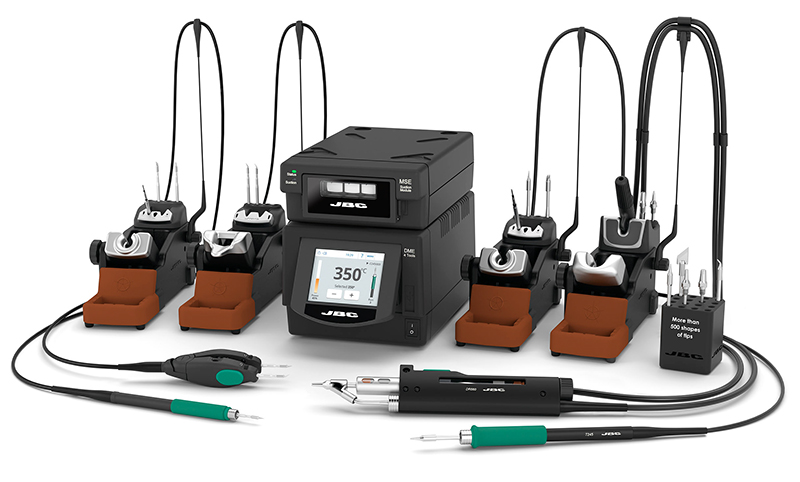

The JBC DMPSE-1QC is a four channel rework and desoldering system with four tools. This system can manage up to four tools simultaneously and is compatible with a wide variety of JBC handpieces and peripherals.

Please note: tips are sold separately with the exception of the DR560 desoldering iron, which has a C560003 nozzle already installed.

Features and Benefits:

• Four channel rework system

• Soldering and vacuum functionality

• Includes DME four tool control unit

• Includes AM120 adjustable micro tweezer (tips sold separately)

• Includes T210 precision iron (tips sold separately)

• Includes T245 general purpose iron (tips sold separately)

• Includes DR560 desoldering iron (includes C560003 nozzle)

• Includes MSE-B electric desoldering module

• Desoldering module does NOT require external source of compressed air

JBC DMPSE-1QC Includes:

DME 4-Tool Control Unit manages up to 4 tools simultaneously and is fully compatible with 10 different JBC Tools, delivering up to 150 W per tool.

MSE Electric Desoldering Module offering exceptional suction power for a complete desoldering process.

DR560 Desoldering Iron is used for desoldering jobs of through-hole components and removing excess solder after SMD rework. It can provide up to 160W.

T210 Precision Handle is perfect for accuracy soldering jobs with medium power requirements.

T245 General Purpose Handle is perfect for both SMDs and jobs with high-power requirements (e.g. ground plane soldering).

AM120 Tweezers Perfect solution for fast and precise SMDs rework of chip components and small/medium SOP from PCB assemblies.

JBC's wide range of Tools feature soldering and rework irons that guarantee maximum efficiency. The short distance tip-to-grip allows you more control and the highest precision.

Intelligent Heat System

Delivers the highest rework quality, powered by JBC's Most Efficient Soldering System and advanced Intelligent Heat Management, which optimizes heat control to extend tip life and minimize energy consumption.

Sleep and Hibernation Modes

Sleep Mode automatically lowers the tip temperature below the solder melting point when the tool rests in the stand. It prevents the dissolution of the iron tip coating into molten solder.

After a configurable period of tool inactivity in the stand, the tool enters Hibernation Mode. It cuts off the power supply, making the tip reach room temperature, thus preventing oxidation and saving energy.

Longer Tip Life

Tip life increases exponentially by using lower temperatures as shown. Using Sleep Mode, the temperature is further reduced, which multiplies tip life by 5.

DME Station Tool Compatibility

The DME control station is compatible with several additional tools, covering a wide variety of soldering and rework applications.

The chart below provides an overview of each tool, along with a compatible stand and tip series.

JBC DMPSE-1QC Product Details:

• Peak power: 150 W per tool

• Selectable temperature: 90 to 450 ºC / 190 to 840 ºF

• Idle temp. stability (still air): ±1.5ºC / ±3ºF
  Meets and exceed IPC J-STD-001F

• Vacuum: 85% / 640 mmHg / 25.4 inHg

• Flow rate: 35 SLPM

• Temperature accuracy: ±3% using reference cartridge

• ESD safe: Meet ANSI/ESD S20.20-2021

• Equipotential bonding: Connection to EPA

• Temp. adjustment: ±50ºC / ±90ºF Through station settings menu

• Tip-to-ground resistance: <2 ohms

• Tip-to-ground voltage: <2 mV RMS
