- Description
- Specifications
- Documents
- Friction tab inside the fir tree allows the tie to sit in mount without falling out prior to installation.
- Fir tree provides low insertion effort yet demonstrates high extraction resistance.
- Disc feature prevents rattling in high-vibration applications and protects against debris ingress.

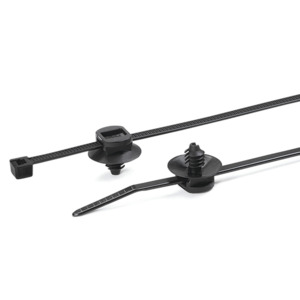

HellermannTyton’s fir tree mounts provide a secure grip in a mounting hole. The mount can slide along the cable tie to adjust orientation as needed. Fir tree mounts are designed to provide a low insertion force and high extraction force. This mount is sold as an assembly with the cable tie.
Brand:Â HellermannTyton
Type:Â Fir Tree Cable Ties
Package Quantity:Â 500 Per Pkg.
Alternate Product Number:Â T30RFT5
Bundle Diameter:Â 0.20" Min | 1.4" Max
Color:Â Black
Flammability Rating:Â UL 94 HB
Height:Â 0.04"
Length:Â 6"
Manufacturer URL:Â https://www.hellermanntyton.us/products/150-55850/
Material:Â Polyamide 6.6 heat stabilized (PA66HS);Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
Mounting Hole Diameter:Â 0.17-0.2"
Mounting Type:Â Fir Tree Mount
Operating Temperature Range: -40 to +221°F
Tensile Strength:Â 30 lb.
Tie Length:Â 04 -08 Inches
Typical Use:Â For Indoor Use Only
UV Stablized:Â No
Width:Â 0.14"
