• Configurable clockwise and counter-clockwise speeds, RPM or Deg/s
• Digital angle indicator - Rotational travel is indicated in degrees or revolutions, with RS-232 output of angle data.
• Angle limits - Stop at or cycle between configurable upper and lower angle limits, in degrees or revolutions.
• Angle dial with 2-Deg resolution
• Auto-return - The torque table rotates to an angle limit or torque limit (requires a Model M7I or M5I indicator and AC1108 multi-function cable), stops, and reverses direction at full speed to the other angle limit or torque set limit.
• Cycling - Same as auto-return, but with the ability to program up to 100,000 cycles. Configurable dwell time for upper and lower limits (set independently) can be set up for up to 10,000 seconds. CW and CCW speeds may be set independently.
• Configurable button functions - CW and CCW button presses can produce one of the following motions: (1) momentary (button-hold), (2) maintained (button release) , or (3) automatic (press and hold for momentary, or quick press and release for maintained motion).
• Overload protection - Protects the torque sensor against overload (requires a Model M7I or M5I indicator and AC1108 multi-function cable).
• Plate Dimensions: 9.4" L x 7.9" W

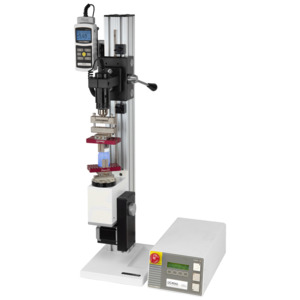

Series TSTM-DC advanced motorized torque test stands are designed for a wide variety of applications, including closure torque testing, fastener torque testing, and more. Two torque capacities are available, 100 lbFin (11.5 Nm) and 200 lbFin (22 Nm).

The stands include a torque loading plate with tapped holes for grip and fixture mounting. Stepper motor design eliminates speed variation with load. A lever-operated slider with travel stops makes engaging and disengaging samples quick and efficient. A modular mechanical design allows the stand to be configured for a variety of applications.

The controller features an integrated angle display and output, programmable angle travel limits, PC control capability, programmable cycling, auto return, overload protection, password protection, and more
