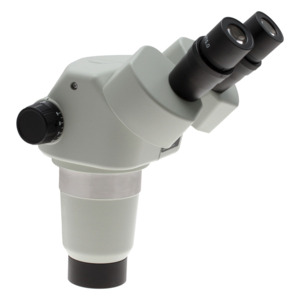

The ideal scope for a wide range of investigative/inspection applications, Aven's dynamic new microscope SPZH-135 extends the boundaries of stereo zoom microscopy, employing standard 15X eyepieces to achieve 21x to 135x continuous zoom magnification all the while providing a continuous working distance of 3.3" (84mm). Replacing the standard 15X eyepieces with our DHW20X eyepieces enhances the magnification range of this dynamic new microscope further - 28X to 180X. Having eyepieces set at a 45-degree angle, the adjustable interpupillary distance between eyepieces of 1.96" (50mm) to 2.91" (74mm) means they can be set to the comfort level of any user.

Wide Magnification Range

The SPZH-135 Binocular Stereo Zoom Microscope offers 21x to 135x continuous zoom with 10x eyepieces, making it an ideal and comfortable instrument for examining small parts. Magnification can be further enhanced with optional lenses.

High Eye Point

10x Eyepieces ensure comfortable viewing for all operators, including those who require eyeglasses. Diopter Adjustment on both Eyepiece Tubes and having eyepieces set at a 45-degree angle, the adjustable interpupillary distance between eyepieces of 1.96" (50mm) to 2.9" (74mm) means they can be set to the comfort level of any user.

Adjustable Zoom Knob

Graduations on the zoom knob tell operators the exact magnifications at which they are working. For applications requiring very specific adjustments, this is a particularly convenient feature.
