• Breakaway torque nut snaps off when UL torque requirements are met
• Second nut remains for easy connector removal
• Self-insulated housing eliminates the need for tape. Safely installs on energized systems
• Grease-filled end cap seals end of conductor for superior weather protection
• Grease-filled boots protect copper teeth from corrosion and prevent arcing
• Hardened copper teeth pierce insulation and bite into conductors
• Rated to 90°C and 600V
• Can be used on Cu-Cu, Al-Al, Cu-Al, and Al-Cu when used in non-tension, insulated applications
• Run 750-3/0 Tap 10-14

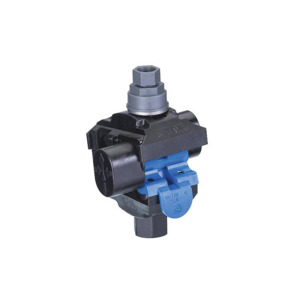

Safe, dependable and easy. The Buchanan B-TAP Insulation Piercing Connector offers a breakaway torque nut that guarantees a perfect connection every time, no more guesswork. It simply snaps off when UL torque requirements are met. The grease-filled rubber end caps provide superior water and corrosion resistance, while the insulation piercing design eliminates downtime and power interruptions. That translates into a 60% installed cost savings compared to split bolts. Installation is easy - all you need is a standard box, socket, or impact wrench. B-TAP Connectors can be safely installed on energized systems, eliminating power interruptions and downtime.
