Tohnichi

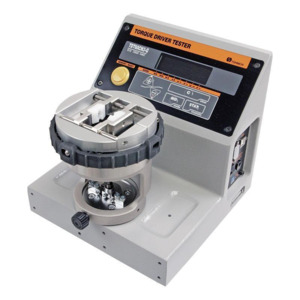

Tohnichi TDT60CN3-G Torque Driver Tester, Digital, 0.0005lbf.in, 1/4? Hex Drive
Our Part #10090696
Condition:New
Mfr Part #TDT60CN3-G
Tohnichi
Tohnichi TDT60CN3-G Torque Driver Tester, Digital, 0.0005lbf.in, 1/4? Hex Drive
Our Part #10090696
Condition:New
Mfr Part #TDT60CN3-G
$4,337.78EACH
- Description
- Specifications
- Documents
- Mechanical loading eliminates errors caused by varied factors such as operator’s measuring speed or application force.
- Torque screwdriver will be firmly fixed by the loading device, which minimizes individual margin of errors, especially when calibrating direct-reading torque screwdrivers.
- Up to 1000 pc of data can be stored. The number of samples, maximum value, minimum value or mean value of the stored data can be calculated and displayed.
- Judgment function allows users to register upper/lower limit torque value, and have TDT3-G give judgment on the measured value against the registered torque range. Blue light is lit when OK, and red light is lit when the value is out of the registered range. 10 different kinds of upper limit value and lower limit value can be registered.
- RS232C (compliant) connector and USB connector (B type) are equipped as standard. They can be easily connected to PC and TOHNICHI printer.
- This tester has CE marking and can be used in EU without problem.
Brand: Tohnichi
Torque: 0.0005 in/lb.
Display: Digital
Drive Size: 1/4"
Includes: STA Loading Device, BA-6 AC Adapter, and Certificate of Calibration
Product Type: Torque Testers
$4,337.78EACH
