- Metal-Out Bags Required by Some Leading Hi-Tech Companies, Exterior Surface Rs 1 x 10 ⁴ to < 1 x 10 ⁸ ohms per ANSI/ESD STM11.11. Metal-Out lower exterior resistance retains less electrostatic charge than Metal-In bags
- Metal-Out Shielding Laminate 0.003” thick (3 mil). Protects ESD sensitive contents from electrostatic fields and electrostatic discharges (ESD) outside the ESD Protected Area
- <10 nJ Discharge Shielding Energy Penetration Test per ANSI/ESD STM11.31. Meets ANSI/ESD S20.20 and ANSI/ESD S541 requirements for ESD shielding packaging inside and outside an ESD Protected Area (EPA)
- Dissipative Inner Surfaces Rs 1 x 10 ⁴ to < 1 x 10 ¹ ¹ ohms per ANSI/ESD STM11.11 meets Static Control Bag ANSI/ESD S11.4 Level 3. ElectroStatic Charges removed when placed on a grounded surface or handled by a grounded operator
- Printed with ESD Protective Symbol and Lot Code Information. Meets the requirements of ANSI/ESD S541 for quality control purposes
- 40% Light Transmission. Allows for identification of bag contents.
- Lead-free RoHS 2, REACH and Conflict Minerals Compliant

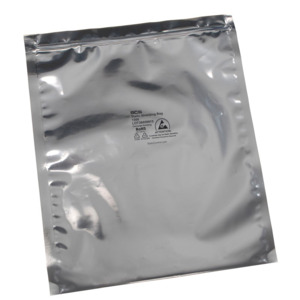

This transparent metal-out static shielding bag is designed to provide static safe packaging for the shipment and/or storage of ESD sensitive items including outside ESD protected areas. Bags are printed with an ESD protective symbol and a lot code for traceability. SCS Metal-Out Static Shielding Bags 1500 are manufactured from a top coated metallized polyester and polyethylene laminate. The proprietary top coating is designed to protect the metal layer and quickly discharge any electrical field. Polyester dielectric, in concert with the metal layer, provides shielding for the bag contents from Electrostatic Discharge (ESD) and helps minimize the penetration of an electrical field.
Brand: SCS
Opening Type: Open Top
Thickness: 3 mil
Length: 15"
Width: 12"
Color: Silver
ESD Safe: Yes
Material: Metalized Polyester/Polyethylene
Package Quantity: 100 Per Pkg.
Product Type: Static Shielding Bags
Series: 1500 Series
Tensile Strength: 4900 psi
Type: Metal-Out Static Shielding Bag
Warranty: 1 Year
