- Uses standard 110 IDC punchdown termination
- Recommended for use with 22–26 AWG Cat5e/6 cabling
- Termination blocks color-coded for T568A/B wiring compatibility
- Durable ABS UL 94V-0 flame-retardant housing designed to last
- 4 RJ45 jacks with gold-plated contacts for maximum conductivity

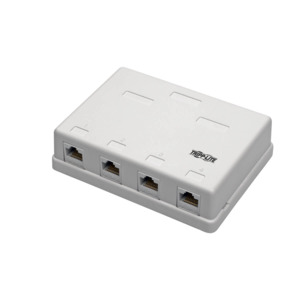

Pre-configured self-contained Cat6 surface-mount box provides up to four RJ45 connections in applications where in-wall installation is impossible. Recommended for audio/video, voice and Ethernet applications.
4-Port Surface-Mount Box Completes A/V, Voice and Ethernet Applications
â– Connect up to 4 Cat5e/6 cables to pre-installed RJ45 keystone jacks
■50 μm gold-plated contacts for maximum conductivity
â– Durable ABS UL 94V-0 flame-retardant housing designed to last
â– Complies with ANSI/TIA/EIA 568B standards
Ideal for Applications in Which In-Wall Installation Is Impossible
■Recommended for use with 22–26 AWG Cat5e/6 cabling
â– Uses standard 110 IDC punchdown termination
â– Termination blocks color-coded for T568A/B wiring compatibility
â– Zip ties included for neatly securing cables through rear routing slots
Easy to Mount Almost Anywhere
â– Mounting screws and double-sided tape are included
