• Max Frequency 3 GHz
• Shielding Effectivity > 90 dB
• 66% Phase Velocity
• Double Shielded
• PVC Jacket

The radio frequency assembly MCX plug to SMA female cable, 36" in length, using LMR-100 coax and LF solder from Pasternack, is part of the largest selection of same-day ship coaxial cables for RF, microwave, and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF testing and measurement, rugged designs for defense/military, telecom antenna tower component jumper connections, production environments, and general use.

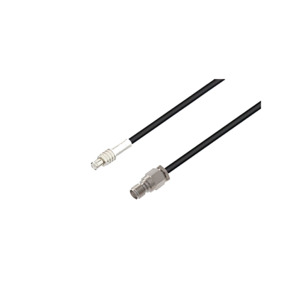

The Pasternack RF coax cable assembly is built with an MCX cable connection on one end and an SMA cable connection on the other. The MCX to SMA cable assemblies have a plug connector on end 1 and a female connector on end 2. This MCX to SMA cable, a plug-to-female coax assembly (PE3W08203LF-36), can also be referred to as an MCX male to SMA jack cable assembly.

The MCX male to SMA jack cable assembly PE3W08203LF-36 is built with LMR-100A, which is a flexible coax type. The Pasternack flexible MCX cable assembly is manufactured with MCX to SMA cable connectors, has a 50 Ohm impedance, and is double shielded. The PE3W08203LF-36 can also be used in the reverse direction as an SMA female to MCX plug cable assembly if the opposite connectivity is required.
