3M
3M 7100025924 Bus Bar Heat Shrink Tubing BBI-5A-20': O.D. 6.67 - 10.86 in, 20 feet/case
Our Part #10029034
Condition:NEW
Mfr Part #7100025924
3M
3M 7100025924 Bus Bar Heat Shrink Tubing BBI-5A-20': O.D. 6.67 - 10.86 in, 20 feet/case
Our Part #10029034
Condition:NEW
Mfr Part #7100025924
Has Expiration Date
RoHS
$FEET
Multiples of: 20
Has Expiration Date
RoHS
- Description
- Specifications
- Documents

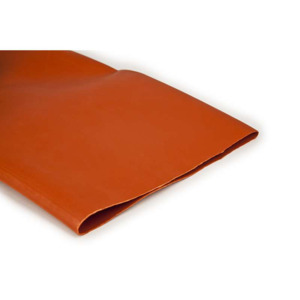

3M™ Bus Bar Heat Shrink Tubing BBI is a flame retardant tubing that provides reliable protection and insulation for 5 to 35 kV rated applications. The cross linked polyolefin construction is split and solvent resistant while offering good tracking resistance. It offers a tight fit for rectangular, square or round bus bars. Features:
- Suitable for copper or aluminum bus bars, metal-enclosed bus bars, metal-clad switchgear and substation switchgear
- Made of red cross-linked polyolefin
- Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
- Flame-retardant
- ASTM, IEC, ANSI, IEEE Approved and RoHS 2011/65/EU Compliant
- Color: Orange
- Material: Polyolefin
- Part Number: BBI5ARD20'
- Product Type: Bus Bar Tubing
- Shape: Square
- Voltage: 25 kV
Brand: 3M
Color: Orange
Length: 50 ft.
Material: Polyolefin
Alternate Product Number: 00051135357309-31196
Voltage: 25 kV
Diameter: 2.38"
Dielectric Strength: 550 V/Mil
Series: BBI-5A Series
Shape: Square
Shelf Life: 120 days
Size Range: 1.01 - 2.38"
Sleeve Length: 20 ft.
Standards: ANSI/IEEE C37.20
Temperature Rating: -55 to 110°C
Tensile Strength: 2200 psi
Type: Bus Bar
