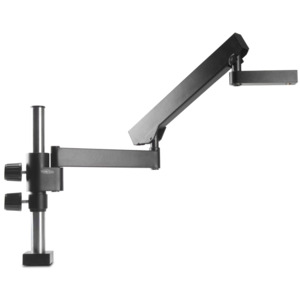

This heavy-duty steel articulating arm with a vertical post is ideal for clearing bench space and making the movement of the microscope or optical system easy. Includes bolt-down table mount. For use with all Scienscope microscopes and optical systems. Can also be used with most other Microscope manufacturers'.

• Vertical Post: 15in Length; 1.47in Diameter
• Clamp Size: 2.75in Wide x 2in Deep
• Maximum Bench Width: 2.75in
• Horizontal Arm Length: 11.96in
• Gradient Arm Length: 17.52in
• Front Arm Length: 6.77in
• Free Revolution in Horizontal Distance: 360
• Maximum Radius: 31.5in
• Minimum Radius: 2.76in
• Maximum Opening Angle: 0-45
• Diameter Mounting Hole (Front Arm): 5/8in
• Diameter Mounting Hole (End Base): 0.87in
