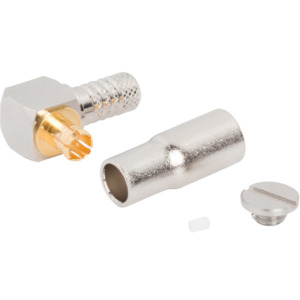

MCX Connectors

Features and Benefits:

• Broadband performance with low reflection DC to 6 GHz
• Quick connect/disconnect snap-on mating reduces installation time
• Accommodates a wide range of miniature RG flexible coaxial cables, including semi-rigid cable providing customers flexibility in their design and manufacturing

The MCX (Micro Coaxial) series is available with 50 or 75 ohm options, and has broadband capability ranging from DC to 6 GHz. In addition, the MCX series features secure, fast and easy snap-on/ snap-off coupling. MCX connectors were introduced in the 1980s and conform to the European CECC 22220 spec.

This series provides designers with options where weight and physical space are limited. While the MCX uses identical inner contact and insulator dimensions as the SMB, the outer diameter of the plug is .140 inches, which is 30% smaller than the SMB.

Applications:

• WLAN
• Global Positioning System (GPS)
• PC/LAN
• Automotive
• Base Station
• Head End Equipment
• Radios
• Wireless/Network Antenna
• Instrumentation
• Telecommunications
