Amphenol RF

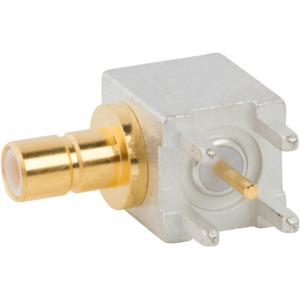

Amphenol RF 903-373J-51A RF SMB Connector, Right Angle, Jack, PCB Through Hole, 50 Ohm
Our Part #57534.1
Condition:New
Mfr Part #903-373J-51A
Amphenol RF
Amphenol RF 903-373J-51A RF SMB Connector, Right Angle, Jack, PCB Through Hole, 50 Ohm
Our Part #57534.1
Condition:New
Mfr Part #903-373J-51A
WARNING
RoHS
$12.39EACH
| Qty: | Price: | Savings |
|---|---|---|
| 1 | $12.39 | |
| 200 | $11.77 | Save |
| 500 | $11.15 | Save |
| 1,000 | $10.90 | Save |
Multiples of: 100
Calif. Prop 65
RoHS
- Description
- Specifications
- Documents
SMB Connectors
- Various plating options in nickel, gold, and tin lead
- Quick connect/disconnect snap on mating reduces installation time
- SMB PCB slide-on plug and jack allows board-to-board mounting with a low insertion force
The SMB interface features a snap-on coupling mechanism and is available in 50 ohm configurations. SMB connectors conform to the requirements of MIL-C-39012, and the interface is in compliance with MIL-STD-348. SMB connectors offer broadband performance with low reflection DC to 4 GHz and extended performance up to 10 GHz.
Applications:
- Base Stations
- Antennas
- Radio Boards
- PC/LAN
- Global Positioning System (GPS)
- Instrumentation
- Telecommunications
Brand: Amphenol RF
Gender: Jack
Termination Type: PCB Through Hole
Impedance: 50 Ohms
Contact Finish: Gold
Contact Material: Brass
Finish: Gold
Frequency: 4 GHz
Insulation Material: PTFE
Material: Brass
Orientation: Right Angle
Type: SMB Connectors
$12.39EACH
| Qty: | Price: | Savings |
|---|---|---|
| 1 | $12.39 | |
| 200 | $11.77 | Save |
| 500 | $11.15 | Save |
| 1,000 | $10.90 | Save |
Multiples of: 100
