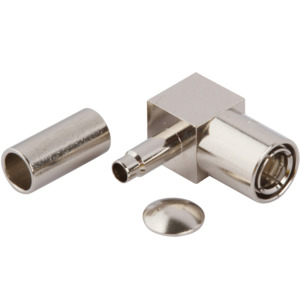

Amphenol RF 903-369P-51A RF SMB Connector, Right Angle, Crimp, Plug, 50 Ohm
Our Part #57531.1
Condition:New
Mfr Part #903-369P-51A
Amphenol RF 903-369P-51A RF SMB Connector, Right Angle, Crimp, Plug, 50 Ohm
Our Part #57531.1
Condition:New
Mfr Part #903-369P-51A
WARNING
RoHS
$19.33EACH
| Qty: | Price: | Savings |
|---|---|---|
| 1 | $19.33 | |
| 100 | $18.36 | Save |
| 200 | $17.40 | Save |
| 500 | $16.43 | Save |
| 1,000 | $15.08 | Save |
Multiples of: 25
Calif. Prop 65
RoHS
- Description
- Specifications
- Documents
SMB Connectors
- Various plating options in nickel, gold, and tin lead
- Quick connect/disconnect snap on mating reduces installation time
- SMB PCB slide-on plug and jack allows board-to-board mounting with a low insertion force
The SMB interface features a snap-on coupling mechanism and is available in 50 ohm configurations. SMB connectors conform to the requirements of MIL-C-39012, and the interface is in compliance with MIL-STD-348. SMB connectors offer broadband performance with low reflection DC to 4 GHz and extended performance up to 10 GHz.
Applications:
- Base Stations
- Antennas
- Radio Boards
- PC/LAN
- Global Positioning System (GPS)
- Instrumentation
- Telecommunications
Brand: Amphenol RF
Gender: Plug
Termination Type: Crimp
Impedance: 50 Ohms
For Use With: M17/152
Contact Finish: Gold
Contact Material: Beryllium Copper
Finish: Nickel
Frequency: 4 GHz
Insulation Material: PTFE
Material: Brass
Orientation: Right Angle
Type: SMB Connectors
$19.33EACH
| Qty: | Price: | Savings |
|---|---|---|
| 1 | $19.33 | |
| 100 | $18.36 | Save |
| 200 | $17.40 | Save |
| 500 | $16.43 | Save |
| 1,000 | $15.08 | Save |
Multiples of: 25
