50 Ohm Plug-to-Plug Configuration on Flexible Cables

Features and Benefits:

• Bayonet coupling mechanism provides quick mating and unmating
• Various cable types allow for frequency and flexibility options
• Low loss performance over long distances

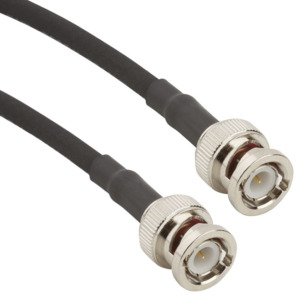

Amphenol RF offers a full line of high-performance BNC cable assemblies utilizing highly flexible, low loss Times LMR-UF cables. These 50 ohm assemblies are available in multiple configurations in an extensive range of standard lengths from 12 inches to 30 meters and are suitable for a number of applications including test and measurements and industrial connectivity.

BNC cable assemblies utilize high-quality connectors which feature the familiar bayonet coupling mechanism for easy mating and un-mating. These connectors are manufactured from machined brass and diecastzinc with nickel plating and offer reliable electrical performance up to 3 GHz. LMR low loss coaxial cable is designed with improved shielding compared to standard RF coaxial cables which allows it to achieve low attenuation loss at high frequencies.

Applications:

• Industrial environments
• Long distance connectivity
• Antenna connections
• Wireless communications
• Radar and GPS systems
