Fluke 9190-INSZ Insert Z

Features and Specifications

• For the 9190A Ultra-Cool Field Metrology Well
• Blank insert

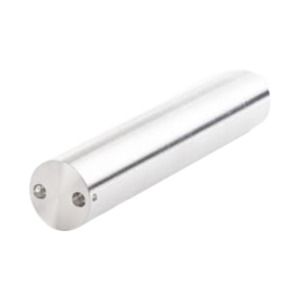

Fluke's 9190-INSZ is a test sleeve insert that is cylindrical shaped and blank that fits into the unit under test (UUT), which is the 9190A Well.

About Inserts

Dry-block calibrators are designed with inserts that contain holes bored into them, matching the standard diameters used for RTDs, PRTs, and thermocouples. These inserts range from A, B, C, D, E, to F (or Z blank), with each providing six varying diameter holes to accommodate the probes. Some RTDs, which can be inserted into thermal wells, have large protective sheaths and flanges. This can make calibration challenging, which also makes the choice of an insert all the more imperative. To ensure safe and easy insertion and removal of probes, choose an insert with the smallest hole diameter possible, but with sufficient clearance. After each use, the insert should be removed and buffed to maintain its effectiveness.

What's in the Box

• 9190-INSZ Insert Z
