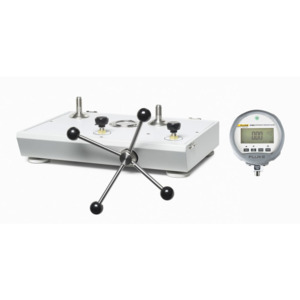

Fluke P5513-2700G-1 Pneumatic Comparison Test Pump (Accredited)

P5513 Features and Specifications

• Pressure range 0 to 3,000 psi (210 bar) (20 MPa)
• High pressure pneumatic operation
• Screw press for fine pressure adjustments
• High quality needle valves for fine control
• Test port adapters which require no PTFE tape or wrenches
• Can be used with the 2700G Reference Pressure Gauge to provide a complete calibration solution

The P5513 pneumatic comparison test pump is designed for testing pressure measuring instruments against master test instruments. This cost effective instrument provides precise control for important calibration requirements and include many features found in our popular line of pneumatic deadweight testers.

Make it a Pressure Calibrator

The Fluke Calibration P5513 Pressure Comparator when combined with the 2700G Reference Pressure Gauges becomes an easy-to-use alternative to traditional deadweight testers that covers a wide range of workload. For convenience, the P5513 is bundled together with selected 2700G Reference Pressure Gauges for a complete bench top pressure calibration solution. These pressure calibrators provide the accuracy, reliability, and capability you need to calibrate dial gauges, digital test gauges and pressure transmitters.

2700G-G20M Features

• Range: 0 to 3000 psi, 0 to 20 MPa
• Resolution: 0.1 psi, 0.01 bar
• Burst Pressure: 10 000 psi, 70 MPa
• Media Compatibility: Note 3
• Uncertainty (k=2): Positive pressure +/- 0.02 % FS / Vacuum +/- 0.05 % FS
• Pressure connection: 1/4 in NPT Male
• Housing/weight: Cast ZNAL/0.56 kg (1.22 lb)
• Display 5-1/2 digits, 16.53 mm (0.65 in) high, 20-segment bar graph, 0 to 100 %
• Power: Three AA alkaline batteries
• Battery life: 75 hours

What's in the Box

• P5513-2700G-1 Pneumatic Comparison Test Pump (Accredited)
• Lid for P5513
• Case for P5513
• 1 Gauge (2700G-G20M)
