Pomona

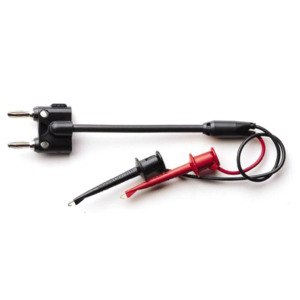

Pomona 3786-C-36 Double Banana Plug to Minigrabber Test Clip, 36” Cable Length, 5 A, 300 V, RG58C/U
Our Part #26615.1
Condition:New
Mfr Part #3786-C-36
Pomona
Pomona 3786-C-36 Double Banana Plug to Minigrabber Test Clip, 36” Cable Length, 5 A, 300 V, RG58C/U
Our Part #26615.1
Condition:New
Mfr Part #3786-C-36
$34.99EACH
Estimated Mfr lead time:8 Days
- Description
- Specifications
- Documents
- Converts double Banana Jacks to Minigrabber Test Clip.
- Lengths other than those specified are available upon request
- End-Double Banana plug material will be Spring-Beryllium Copper per QQ-C-533, Alloy 172, Cond. HT.
- Plug Body will be Brass per QQ-B-626, Alloy 360, ½ Hard.
- The finish will be Nickel plated per QQ-N-290, Class 2, 200/300 microinches.
- End-Minigrabber material will be Contact-Beryllium Copper per QQ-C-533, Alloy 165, ¼ HM.
- Spring will be stainless steel, Alloy 302.
- The finish will be Contact - Gold plated per MIL-G-45204, Type I, Class 00.
Brand: Pomona
Voltage: 300 V
Cable Length: 36"
Cable Type: RG58C/U
Color: Black, Red
Contact Finish: Gold Plated
Contact Material: Beryllium Copper
Current: 5 A
Maximum Temperature: 122°F
Wire Size: 20 AWG
$34.99EACH
Estimated Mfr lead time:8 Days
