Fluke FLK-1537-283/PV Solar Kit: Insulation Tester, Multimeter And Clamp

A Kit for Testing Insulation Resistance And Continuity In PV Wiring And Modules

The Fluke FLK-1537-283/PV Solar Kit provides comprehensive PV system testing—insulation, continuity, voltage, and current in one kit. Its dual-instrument solar kit combines the Fluke 1537 insulation tester and 283 FC logging multimeter and offers wireless data logging with Fluke Connect for efficient documentation and reporting.

1537 Insulation Tester Features

• Tailor tests with user-selectable voltages of 250 V, 500 V, 1000 V, and 2500 V
• Reach up to 500 Gigohm in insulation resistance measurement
• Execute up to 1,300 measurements at 2500 V or 6,500 measurements at 250 V
• Benefit from a CAT IV 600 V rating and a built-in voltage alarm function

153X Series of Insulation Testers

The 153X series of insulation testers helps you to quickly and efficiently determine the integrity of cables, windings on motors and transformers, as well as numerous electrical equipment and installations.

The Fluke 1537 Insulation Resistance Tester is engineered to simplify frontline troubleshooting in a portable, lightweight, fast, accurate and reliable insulation tester. Whether you're on the factory floor or working in the field at a solar installation, Fluke's 1537 with user-selectable test voltages from 250 V to 2500 V and resistance measurements up to 500 Gigohm allows you to cover more workload with a single tool. Equipped with an intuitive user interface, a short circuit current of up to 5 mA and a CAT IV 600 V rating, this portable high-voltage insulation tester can deliver rapid and stable resistance measurements no matter where you take it.

283FC Digital Handheld Multimeter Features

• 1500 VAC / 1000 VDC Digital Multimeter; CAT III 1500 V/CAT IV 1000 V Safety Rated.
• Current measurements up to 60 A AC/DC for safely troubleshooting individual strings of modules with greater accuracy* (*when using a283 FC wireless current clamp).
• Measure voltage and current at the same time and automatically calculate VA Power when used with the a283 FC clamp meter.
• Visual and audio polarity indicators with on/off function help prevent accidental module wiring issues.
• User-defined limit gauge helps you make quick go/no-go troubleshooting decisions.
• Integrated multimeter readiness selfcheck:

• Get insights to the status of the meter’s calibration, battery life availability, test lead functionality, and AC/DC voltage measurement functionality.
• Logging and saving measurements to internal memory or Fluke Connect to perform later detailed analysis.

283FC DMM Provides Convenience and Safety for Solar Professionals

Streamline troubleshooting with the Fluke 283FC Digital Multimeter's (DMM) user-defined limit gauge setting, which allows you to quickly identify measurement deviations or errors, and assists in maintaining optimum performance.

It also redefines standards for technicians working in DC environments up to 1500 V. It is designed to enhance safety and productivity, providing accurate, reliable, and consistent results, whether used with utility-scale solar PV arrays, wind power, electric railways, or data centers.

User-Defined Limit Gauge

For large-scale PV projects requiring repetitive measurements and consistent results, the user-defined limit gauge is an essential time-saving tool. This adjustable gauge provides audio and visual alerts when measurements fall outside the expected range, enabling quick evaluation of results, boosting confidence in system performance, and identifying potential issues.

The dedicated limit gauge button allows easy toggling of warnings, setting new measurement parameters, or selecting from previously used profiles. This customization simplifies troubleshooting, quickly identifying deviations or errors, and helps maintain optimal solar installation performance.

A283FC Current Clamp Features

• AC/DC 60 A; CAT III 1500 V/CATIV 1000V Safety Rated; Jaw opening of 34mm
• Wireless connectivity allows for convenient transmission of measurements.
Automatically calculate VA power.
• View more than one measurement at a time allowing you to monitor additional parameters like DC amperage or voltage.
• Convenient logging and saving features.
• Built-in real-time clock: each measurement can be time- and date-stamped for accurate recordkeeping.

Wireless Current Clamp For Troubleshooting

The a283 FC True-RMS wireless current clamp is engineered to streamline troubleshooting while maintaining safety and reliability. It measures both AC and DC currents up to 60 A, providing accurate and dependable readings for various applications such as solar installations, electrical systems, and industrial equipment.

Its non-contact design ensures safe connections without touching live wires, allowing you to close the clamp in a cabinet and take measurements from a safe distance. It has a safety rating of CAT III 1500 V and CAT IV 1000 V, aligning with the 283 FC's safety standards.

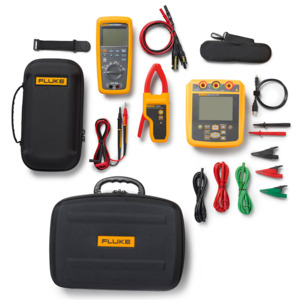

What's in the Box

• 1537 Insulation Tester
• 283FC/PV DMM Solar Kit (w/ a283FC clamp)
