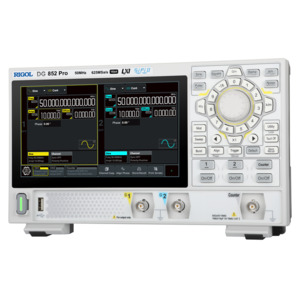

RIGOL DG852 Pro Arbitrary Waveform Generator, 50MHz, 625MS/s, 2 Mpts, 2 CH, 16 bit, DG800 Pro Series

Our Part #20004954

Mfr Part #DG852 Pro

RIGOL DG852 Pro
RIGOL
RIGOL

RIGOL DG852 Pro Arbitrary Waveform Generator, 50MHz, 625MS/s, 2 Mpts, 2 CH, 16 bit, DG800 Pro Series

Our Part #20004954

Mfr Part #DG852 Pro

$499.00EACH
Quantity on Order:1

Product Features

  • Max. sample rate: 625 MSa/s
  • Max. output frequency: 50 MHz
  • 16-bit vertical resolution
  • Arbitrary waveform editing function with a max. Arb waveform length of 2 Mpts/CH (8 Mpts/CH optional)
  • Built-in high-order harmonic generator (max. 20th order)
  • Independent signal frequency measurement channel with a max. frequency of 500 MHz
  • USB and LAN interfaces for remote connection
  • Type-C power interface for powering the instrument with mobile power source, satisfying testing requirements in the field
  • Standard Web Control function for easier remote cooperation

DG800 Pro series Function/Arbitrary Waveform Generator provides up to 625 MSa/s sample rate and 2 Mpts/CH memory depth (standard). It is a cost-effective function/arbitrary waveform generator that combines multiple functions including Function Generator, Arbitrary Waveform Generator, Noise Generator, Pulse Generator, Harmonic Generator, Analog/Digital Modulator and Counter.

In The Box

  • 1 x Power adaptor conforming to the standard of the destination country
  • 1 x USB cable
  • 1 x BNC cable (CB-BNC-BNC-MM-100)

BrandRIGOL
Frequency50 MHz
Number of Channels2 Channel
Sampling Rate625 MS/s
SeriesDG800 Pro Series
Memory2 Mpts
Vert. Resolution16 bit
$499.00EACH
Quantity on Order:1
