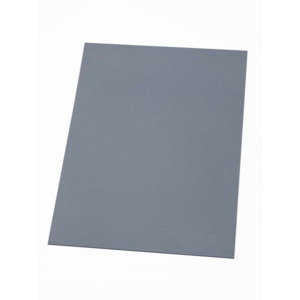

3M 7100139349 Thermally Conductive Interface Pad Sheet 5519, 210 mm x 155 mm x 2.0 mm
Our Part #10301893
Condition:NEW
Mfr Part #7100139349
3M 7100139349 Thermally Conductive Interface Pad Sheet 5519, 210 mm x 155 mm x 2.0 mm
Our Part #10301893
Condition:NEW
Mfr Part #7100139349
Has Expiration Date
RoHS
$71.64EACH
Multiples of: 60
Has Expiration Date
RoHS
- Description
- Specifications
3M™ Thermally Conductive Silicone Interface Pad 5519 is a highly conformable, slightly tacky silicone elastomer pad. Designed to provide heat transfer path between heat generating components and heat sinks, heat spreaders or other cooling devices.
Standard Lead Time: 49 Calendar Days
Features:- Very high thermal conductivity (4.9 W/m-K)
- Hardness :Shore 00 = 70
- Good softness and conformability even to non-flat surfaces
- Slight tack allows pre-assembly
- Good wettability for better thermal conductivity
- Good dielectric properties
- UL 94 V-0
- High temperature resistance
- Part Number: 5519-20
- Width: 8.268 in
Brand: 3M
Series: 5519 Series
Type: Thermally Conductive Interface Pad
Color: Gray
Width: 210 mm
Length: 155 mm
Alternate Product Number: 7100139349-31180
Applications: Provides Heat Transfer Path Between Heat Generating Components and Heat Sinks, Heat Spreaders or Other Cooling Devices
Material: Silicone
Shelf Life: 730 days
Thickness: 2 mm
