• Connect up to 6 Sensors
• Switched Output
• MS 5015 2 Pin Connector and BNC Output
• IP66, NEMA 4/4X Rated
• Fiberglass
• Heavy Duty Terminal Strips
• Quick Release Door Latches

The CMCP310 Series Switchable BNC Junction Boxes are designed for terminating and switching the outputs of up to 48 accelerometers. They are installed in a location as close to the machine as practical to reduce wiring cost and yet provide convenient safe access to the vibration signal by an operator with a portable data collector or analyzer.

The CMCP310 Series Junction Boxes are available in three (3) versions, “FG” Nema 4x Fiberglass, “PS” Nema 4 Powder Coated Steel and “SS” Nema 4x Stainless Steel. Both internal and external switch/BNC models are available. Internal models are provided with quick access latches and external models with screw covers and protective caps for the BNC fitting. In harsh environments internal models should be specified. Black and white bezel tagging is provided for channel and switch identification.

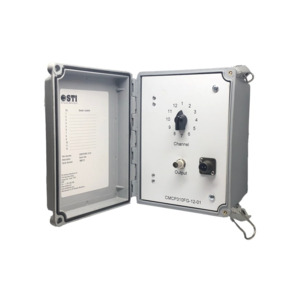

The CMCP310FG Fiberglass NEMA 4X enclosure made of molded fiberglass polyester and is easily punched or drilled. It has outstanding chemical and temperature resistance and physical properties. A seamless foam in-place gasket assures a watertight and dust tight seal. Screw covers are secured with captivated Monel cover screws.

Note: The displayed image is part of a series and may not precisely represent the exact appearance of the product.
