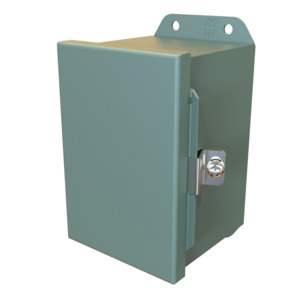

Hammond Manufacturing HJ644HLP Type 4, 12 Junction Box, Hinge Door w/Clamps, 6x4x4, Steel, Gray, HJH Series
Our Part #10285236
Condition:NEW
Mfr Part #HJ644HLP
Hammond Manufacturing HJ644HLP Type 4, 12 Junction Box, Hinge Door w/Clamps, 6x4x4, Steel, Gray, HJH Series
Our Part #10285236
Condition:NEW
Mfr Part #HJ644HLP
$98.93EACH
- Description
- Specifications
- Documents
- Body formed from 16 or 14 gauge steel. Covers are formed from 14 gauge steel.
- Smooth, continuously welded seams without knockouts, cutouts or holes.
- Welded brackets provide for enclosure mounting.
- Continuous hinged cover is secured with stainless steel clamps and screws.
- Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin.
- Seamless poured-in place gasket.
- Internal threaded weld studs are provided for mounting inner panels.
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
Application
Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. It provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.Standards
UL 508A Type 3R, 4, 12 and 13CSA Type 3R, 4, 12 and 13
Complies with NEMA Type 3R, 4, 12 and 13, IEC 60529, IP66
Brand: Hammond Manufacturing
Color: Gray
Depth: 4 in.
Height: 6 in.
IP Rating: IP66
Material: Steel
Safety: CE, RoHS, UL, CSA
Series: HJH Series
Width: 4 in.
$98.93EACH
