$1.50EACH
Multiples of: 2,000
RoHS
- Description
- Specifications
- Documents
- All-in-one bundling and fastening solution reduces costs and assembly time. Anti-rotational oval fastener forces bundle to travel in intended direction. High-spec materials and superior design deliver excellent performance and value.

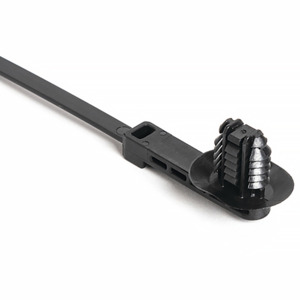

One-piece cable tie and mount offers a simple bundling and mounting solution. The innovative design of this fir tree establishes a 360-degree interface with the panel hole, ensuring a more secure fit. The oval shape won’t rotate once inserted, ensuring proper routing of wires and hoses. The disc feature prevents rattling in high-vibration applications and protects against debris ingress.
Brand: HellermannTyton
Type: Fir Tree Mount
Package Quantity: 2000 Per Pkg.
Alternate Product Number: T50ROSFTOVALIL25B
Bundle Diameter: 0.08" Min | 1.97" Max
Color: Black
Flammability Rating: UL 94 HB
For Use With: 104-10010;110-05005;110-07100;110-70083;110-70084;110-70130;110-80000;110-80001
Height: 0.51"
Length: 9.1"
Locking Style: Releasable
Material: Polyamide 6.6 UV-stabilized (PA66UV)
Mounting Hole Diameter: 0.24 - 0.28"
Operating Temperature Range: -40 to +230°F
RoHS Compliance: Yes
Style: 1-Piece Tie Assemblies
Tensile Strength: 250 lb.
Thickness: 0.02 - 0.27"
Tooth Type: Outside Serrated
Typical Use: For Indoor Use Only
UV Stablized: No
Width: 0.49"
$1.50EACH
Multiples of: 2,000
