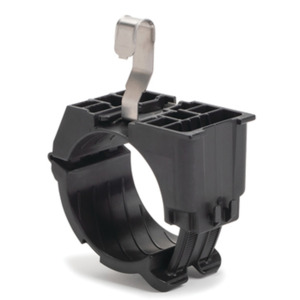

HellermannTyton 156-04194 Torque Tube Hanger, Inline Ratchet Clamp, Nextracker, PA66HIRHSUV/SS, Black

Our Part #10217599

Condition:New

Mfr Part #156-04194

HellermannTyton 156-04194
HellermannTyton

HellermannTyton 156-04194 Torque Tube Hanger, Inline Ratchet Clamp, Nextracker, PA66HIRHSUV/SS, Black

Our Part #10217599

Condition:New

Mfr Part #156-04194

RoHS
$2.92EACH
Multiples of: 175
RoHS
  • One-piece ratchet clamp can be pre installed, conveniently adding wires at installation or a later time.
  • A quick, toolless, one-handed installation. Releasable function to allow for adjusting or adding wire.
  • Clamp saddle provides additional routing option using a cable tie, eliminating the need to drill or add complex routing parts.
  • Impact modified, heat and UV stabilized PA66 provides long-term durability in hazardous solar conditions.
  • Nextracker-specific stainless steel mounting hanger designed for severe conditions of single axis tracker movement.

The Nextracker Inline Ratchet Clamp Torque Tube Solar Hanger offers one-handed, toolless simplicity and size versatility for managing wires and cables on solar modules. The robust design and solar-optimized materials make it ideal for heavy duty, outdoor applications. The one-piece adjustable clamp can be closed by hand to the desired diameter, replacing multiple sizes for fixed diameter fasteners. The integrated release feature enables easy and nondestructive removal of cables by inserting a flat-head screwdriver. This allows the clamp to be reused without removing it.

BrandHellermannTyton
TypeInline Ratchet Clamps
Alternate Product NumberIRCDNEXTT
Bundle Diameter1.42" Min | 2.0" Max
ColorBlack
Flammability RatingUL 94 HB
Halogen ContentYes
Height2.84"
Length5.55"
MaterialPolyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV);Stainless Steel (SS304)
Operating Temperature Range-40°F to +221°F (-40°C to +105°C)
RoHS ComplianceYes
SeriesRatchet P-Clamp Series
Tensile Strength25 lb./in.
Typical UseFor Indoor and Outdoor Use
UV StablizedYes
Width1.37"
$2.92EACH
Multiples of: 175
