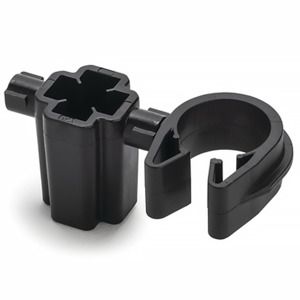

HellermannTyton 156-02912 Stud Mount to MOC Clip, 12mm Clip, 5mm/6mm Stud Mount, PA66HIRHSUV, Black

Our Part #10217581

Condition:New

Mfr Part #156-02912

HellermannTyton 156-02912
HellermannTyton

HellermannTyton 156-02912 Stud Mount to MOC Clip, 12mm Clip, 5mm/6mm Stud Mount, PA66HIRHSUV, Black

Our Part #10217581

Condition:New

Mfr Part #156-02912

RoHS
$0.47EACH
Multiples of: 2,000
RoHS
  • Multi option stud mount clip secures bundles running alongside a bolt or stud.
  • Patented retention design features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement.
  • Controlled flex and angled entry promote easy installation.
  • Independent rotation allows for adjustable routing orientation.
  • High-performance stud mount design allows for easy installation and delivers outstanding stud retention to keep bundles secure.

The MOC with stud mount features HellermannTyton's unique retention clip with a best-in-class stud mount to secure to a 5mm or 6mm stud or bolt. The mount delivers a low insertion force while exhibiting high extraction resistance for a secure mounting point.

BrandHellermannTyton
TypeMOC Clips with Stud Mount
Alternate Product NumberSMF2MOC12M
Bundle Diameter0.41" Min | 0.54" Max
ColorBlack
Depth0.61"
Flammability RatingUL 94 HB
Halogen ContentYes
Height1.2"
Length1.77"
MaterialPolyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Mounting TypeStud Mount
Operating Temperature Range-40°F to +230°F (-40°C to +110°C)
RoHS ComplianceNo
Typical UseFor Indoor and Outdoor Use
UV StablizedYes
