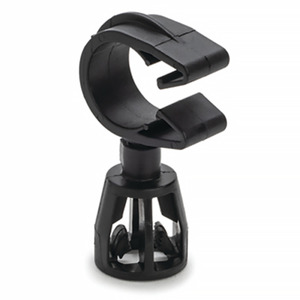

HellermannTyton 156-02882 Stud Mount to MOC Clip, 16mm Clip Above Mount, 5mm/6mm Stud Mount, Black
Our Part #10217576
Condition:New
Mfr Part #156-02882
HellermannTyton 156-02882 Stud Mount to MOC Clip, 16mm Clip Above Mount, 5mm/6mm Stud Mount, Black
Our Part #10217576
Condition:New
Mfr Part #156-02882
$0.54EACH
Multiples of: 2,000
- Description
- Specifications
- Documents
- MOC stud mount secures bundles above a bolt or stud.
- Patented retention design features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement.
- Controlled flex and angled entry promote easy installation.
- Independent rotation allows for adjustable routing orientation.
- High-performance stud mount design allows for easy installation and delivers outstanding stud retention to keep bundles secure.
The MOC with stud mount features HellermannTyton's unique retention clip with a best-in-class stud mount to secure to a 5mm or 6mm stud or bolt. The mount delivers a low insertion force while exhibiting high extraction resistance for a secure mounting point.
Brand: HellermannTyton
Type: MOC Clips with Stud Mount
Alternate Product Number: SMFMOC16M
Bundle Diameter: 0.55" Min | 0.72" Max
Color: Black
Depth: 0.59"
Flammability Rating: UL 94 HB
Halogen Content: Yes
Height: 1.73"
Length: 1.02"
Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Mounting Type: Stud Mount
Operating Temperature Range: -40°F to +230°F (-40°C to +110°C)
RoHS Compliance: No
Typical Use: For Indoor and Outdoor Use
UV Stablized: Yes
$0.54EACH
Multiples of: 2,000
