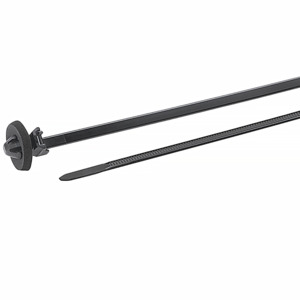

HellermannTyton 156-00264 Cable Tie, Arrowhead Mount w/Seal, 6.3"Lx0.18"W, PA66HS, Black, 500/Bag
Our Part #10217080
Condition:New
Mfr Part #156-00264
HellermannTyton 156-00264 Cable Tie, Arrowhead Mount w/Seal, 6.3"Lx0.18"W, PA66HS, Black, 500/Bag
Our Part #10217080
Condition:New
Mfr Part #156-00264
RoHS
$0.43EACH
Multiples of: 3,500
RoHS
- Description
- Specifications
- Documents
- Arrowhead design makes installation quick and easy by hand. Ties "clicks" into place upon final installation signaling installer insertion is complete. Design provides low insertion and high extraction force.
Arrowhead Push Ties with rubber seal secure fast and easy, while providing a special rubber seal to minimize water, dirt, or dust from getting through the mounting hole. The anchor adjusts for variations in panel thicknesses which insures a secure fixing at all times.
Brand: HellermannTyton
Type: Push-Mount & Screw-Mount Cable Ties
Package Quantity: 500 Per Bag
Alternate Product Number: T50SOSSFT6.5E-MDL
Bundle Diameter: 0.06" Min | 1.2" Max
Closure Type: plastic pawl
Color: Black
Flammability Rating: UL 94 V-2
For Use With: 104-10010;110-05005;110-07100;110-70083;110-70084;110-70130;110-80000;110-80001
Height: 0.67"
Length: 6.3"
Material: Polyamide 6.6 heat stabilized (PA66HS)
Mounting Hole Diameter: 0.25-0.26"
Operating Temperature Range: -40 to +221°F
RoHS Compliance: Yes
Style: 1-Piece Tie Assemblies
Tensile Strength: 50 lb.
Thickness: 0.02 - 0.07"
Tie Length: 04 -08 Inches
Tooth Type: Outside Serrated
Typical Use: For Indoor and Outdoor Use
UV Stablized: No
Width: 0.18"
$0.43EACH
Multiples of: 3,500
