HellermannTyton

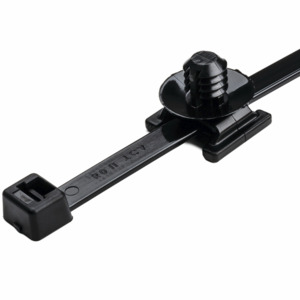

HellermannTyton 156-00067 Cable Tie, Fir Tree Mount, 15"L, 120lb, PA66HIRHSUV, Black, 100/Pkg
Our Part #10217067
Condition:New
Mfr Part #156-00067
HellermannTyton
HellermannTyton 156-00067 Cable Tie, Fir Tree Mount, 15"L, 120lb, PA66HIRHSUV, Black, 100/Pkg
Our Part #10217067
Condition:New
Mfr Part #156-00067
RoHS
$1.57EACH
Multiples of: 100
RoHS
- Description
- Specifications
- Documents
- Heavy Duty fir tree mounts provide a secure grip in a mounting hole
- Fir tree provides low insertion effort yet demonstrates high extraction resistance
- Disc feature prevents rattling in high-vibration applications and protects against debris ingress
- Friction tab inside the fir tree allows the tie to sit in mount without falling out prior to installation
HellermannTyton’s fir tree mounts provide a secure grip in a mounting hole. The mount can slide along the cable tie to adjust orientation as needed. Fir tree mounts are designed to provide a low insertion force and high extraction force. This mount is sold as an assembly with the cable tie.
Brand: HellermannTyton
Type: Push-Mount & Screw-Mount Cable Ties
Package Quantity: 100 Per Pkg.
Alternate Product Number: T120RFT9A
Bundle Diameter: 0.20" Min | 4.13" Max
Closure Type: plastic pawl
Color: Black
Flammability Rating: UL 94 HB
For Use With: 104-10010;110-05005;110-09100;110-09110;110-80000;110-80001;110-80003;110-80004;110-80017;110-95000
Height: 0.75"
Length: 15"
Locking Style: Self-Locking (Standard)
Manufacturer URL: https://www.hellermanntyton.us/products/156-00067/
Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Mounting Hole Diameter: 0.34 - 0.36"
Operating Temperature Range: -40 to 221°F
RoHS Compliance: Yes
Tensile Strength: 120 lb.
Tie Length: 13-18 Inches
Tooth Type: Inside Serrated
Typical Use: For Indoor Use Only
UV Stablized: No
Width: 0.3"
$1.57EACH
Multiples of: 100
