- Design helps silence and stabilize the tie in high-vibration applications.
- Arrowhead-style mount provides low insertion and high extraction force.
- Rubber seal restricts water and debris from passing through mounting hole.

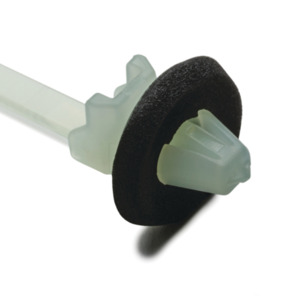

The arrowhead design of these ties offers a positive, low insertion force and a high extraction force. These ties feature a foam rubber seal which provides additional protection against moisture, dirt, and other impurities. One-piece mounting ties offer a complete solution by both bundling cable and at the same time providing a mounting solution. HellermannTyton’s one-piece mounting ties offer the ideal combination of high specification materials and superior design to suit the mounting and bundling needs of complex applications.
Brand: HellermannTyton
Type: Push-Mount & Screw-Mount Cable Ties
Package Quantity: 500 Per Pkg.
Alternate Product Number: T50SOSSFT6.5E-MS-MD
Bundle Diameter: 0.06" Min | 1.38" Max
Closure Type: plastic pawl
Color: Natural
Flammability Rating: UL 94 V-2
For Use With: 104-10010;110-05005;110-07100;110-70083;110-70084;110-70130;110-80000;110-80001
Height: 0.63"
Length: 6.5"
Manufacturer URL: https://www.hellermanntyton.us/products/126-00065/
Material: Polyamide 6.6 heat stabilized (PA66HS)
Mounting Hole Diameter: 0.25-0.27"
Mounting Type: Arrowhead Mount
Operating Temperature Range: -40 to +221°F
RoHS Compliance: Yes
Tensile Strength: 40 lb.
Tie Length: 04 -08 Inches
Tooth Type: Outside Serrated
Typical Use: For Indoor Use Only
UV Stablized: No
Width: 0.18"
