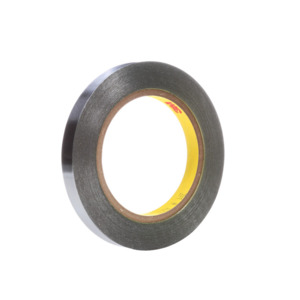

3M 7010334287 Lead Foil Tape 421, Dark Silver, 3/8"x36yd, 6.3 mil, 32 rolls/Case

Our Part #10029521

Condition:NEW

Mfr Part #7010334287

3M 7010334287
3M
3M

3M 7010334287 Lead Foil Tape 421, Dark Silver, 3/8"x36yd, 6.3 mil, 32 rolls/Case

Our Part #10029521

Condition:NEW

Mfr Part #7010334287

$46.86Roll
Multiples of: 96

3M™ Lead Foil Tape 421 Is an electrically and thermally conductive tape. This highly conformable tape resists flame, moisture, weather, UV degradation, chemicals and radiation. The malleable tape can be shaped into complex or detailed patterns or die-cut into specific shapes to meet assembly and manufacturing process needs.

Pliable and Conductive Lead Tape
3M™ Lead Foil Tape 421 is a dark gray, lead foil backed tape coated with a distinct green rubber adhesive that offers good initial grab and a long-lasting bond that removes cleanly from most surfaces. It is an extremely conformable and pliable tape that can be formed into detailed and intricate shapes and patterns. The lead foil backing can be burnished to fully cover the adhesive and allow full contact of the lead foil to the metal base. This metal to metal contact results in a continuation of the electrical path, reducing build-up at the adhesive interface. This lead foil tape is formulated to be electrically and thermally conductive and carries a strong acid and base resistance, making it ideal for electroplating, as a radiation barrier or x-ray plate masking.

Application Ideas


Electroplating
Radiation barrier
Moisture barrier
Chemical milling
X-ray plate masking

Features:
  • Conformable tape resists flame, moisture, weather, UV degradation, and many chemicals
  • Performs over a wide variety of temperature conditions and is heat reflective
  • Heat and light reflective tape protects, insulates and enhances lighting efficiency
  • Can be die-cut into specific shapes for assembly and manufacturing processes
  • The rubber-based adhesive combined with the rugged, durable backing provides long service life
Specifications:
  • Color: Dark Silver
  • Package Quantity: 32 RLS
  • Width: 0.37 in

Brand3M
Alternate Product Number00051138953126-31196
ColorDark Silver
Length36 yd.
Series421 Series
Thickness6.3 mil
Width0.37"
Adhesive MaterialRubber
Dimensions3/8 in x 36 yd
Backing MaterialLead Foil
Tensile Strength15 lb./in.
Adhesion Strength45 oz./in.
ApplicationsElectroplating, Radiation Barrier, Moisture Barrier, Chemical Milling, X-Ray Plate Masking, Maskant During Paint Stripping, Add Weight-Balance to Equipment Parts-Golf Clubs, Tennis Rackets, etc.
